Import single DLC CSV file

simba.pose_importers.dlc_importer_csv.import_dlc_csv(config_path: Union[str, PathLike], source: str) → List[str][source]

Import file or folder of DLC pose-estimation CSV files to SimBA project. Returns list of file paths that has been imported.

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • source (str) – path to file or folder containing DLC pose-estimation CSV files

Return List[str]

Paths to location of imported files.

Example

>>> import_dlc_csv(config_path='project_folder/project_config.ini', source='CSV_import/Together_1.csv')
>>> ['project_folder/csv/input_csv/Together_1.csv']
simba.pose_importers.dlc_importer_csv.import_dlc_csv_data(config_path: Union[str, PathLike], data_path: Union[str, PathLike], interpolation_settings: Optional[Dict[str, Any]] = None, smoothing_settings: Optional[Dict[str, Any]] = None) → None[source]

Import multiple DLC CSV tracking files to SimBA project and apply specified interpolation and smoothing parameters to the imported data.

Parameters

  • config_path (Union[str, os.PathLike]) – Path to SimBA config file in ConfigParser format.

  • data_path (Union[str, os.PathLike]) – Path to directory holding DLC pose-estimation data in CSV format, or path to a single CSV file with DLC pose-estimation data.

  • interpolation_settings (Optional[Dict[str, Any]]) – Dictionary holding settings for interpolation.

  • smoothing_settings (Optional[Dict[str, Any]]) – Dictionary holding settings for smoothing.

Return None

Example

>>> interpolation_settings = {'type': 'body-parts', 'method': 'linear'}
>>> smoothing_settings = None #{'time_window': 500, 'method': 'savitzky-golay'}
>>> import_dlc_csv_data(config_path='/Users/simon/Desktop/envs/simba/troubleshooting/two_black_animals_14bp/project_folder/project_config.ini', data_path='/Users/simon/Desktop/envs/simba/troubleshooting/two_black_animals_14bp/project_folder/new_data', interpolation_settings=interpolation_settings, smoothing_settings=smoothing_settings)

Import multiple DLC CSV files

Import MARS pose-estimation data

class simba.pose_importers.import_mars.MarsImporter(config_path: Union[str, PathLike], data_path: Union[str, PathLike], interpolation_method: str, smoothing_method: dict)[source]

Bases: object

Import two animal MARS pose-estimation data (in JSON format) into a SimBA project in parquet or CSV format.

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • data_folder (str) – Path to file (or directory) with data in .json format.

  • interpolation_settings (str) – String defining the pose-estimation interpolation method. OPTIONS: ‘None’, ‘Animal(s): Nearest’, ‘Animal(s): Linear’, ‘Animal(s): Quadratic’,’Body-parts: Nearest’, ‘Body-parts: Linear’, ‘Body-parts: Quadratic’. See this image <https://gist.github.com/gyassine/b47b90e8de935cc06ef856401f7582b0>>_ for comparison of interpolation methods.

  • smoothing_method (dict) – Dictionary defining the pose estimation smoothing method. EXAMPLE: {‘Method’: ‘Savitzky Golay’, ‘Parameters’: {‘Time_window’: ‘200’}})

Note

Multi-animal import tutorial.

Examples

>>> mars_importer = MarsImporter(config_path=r'MyConfigPath', data_folder=r'MyMarsDataFolder', interpolation_settings='None', smoothing_settings={'Method': 'None', 'Parameters': {'Time_window': '200'}})
>>> mars_importer.import_data()

References

1

Segalin et al., The Mouse Action Recognition System (MARS) software pipeline for automated analysis of social behaviors in mice, eLife, 2021.

Import DANNCE pose-estimation data

Import SLEAP CSV pose-estimation data

class simba.pose_importers.sleap_csv_importer.SLEAPImporterCSV(config_path: Union[str, PathLike], data_folder: Union[str, PathLike], id_lst: List[str], interpolation_settings: Optional[Dict[str, str]] = None, smoothing_settings: Optional[Dict[str, Union[int, str]]] = None)[source]

Bases: ConfigReader, PoseImporterMixin

Importing SLEAP pose-estimation data into SimBA project in CSV format.

Note

Google Colab notebook for converting SLEAP .slp to CSV written by @Toshea111. Example expected SLEAP csv data file for 5 animals / 4 pose-estimated body-parts.

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • data_folder (str) – Path to folder containing SLEAP data in csv format.

  • id_lst (List[str]) – Animal names. This will be ignored in one animal projects and default to Animal_1.

  • interpolation_setting (Optional[Dict[str, str]]) – Dict defining the type and method to use to perform interpolation {‘type’: ‘animals’, ‘method’: ‘linear’}.

  • smoothing_settings (Optional[Dict[str, Union[str, int]]]) – Dictionary defining the pose estimation smoothing method {‘time_window’: 500, ‘method’: ‘gaussian’}.

References

1

Pereira et al., SLEAP: A deep learning system for multi-animal pose tracking, Nature Methods, 2022.

>>> sleap_csv_importer = SLEAPImporterCSV(config_path=r'project_folder/project_config.ini', data_folder=r'data_folder', id_lst=['Termite_1', 'Termite_2', 'Termite_3', 'Termite_4', 'Termite_5'], interpolation_settings={'type': 'animals', 'method': 'linear'}, smoothing_settings = {'time_window': 500, 'method': 'gaussian'})
>>> sleap_csv_importer.run()

Import SLEAP H5 pose-estimation data

class simba.pose_importers.sleap_h5_importer.SLEAPImporterH5(config_path: Union[str, PathLike], data_folder: Union[str, PathLike], id_lst: List[str], interpolation_settings: Optional[str], smoothing_settings: Optional[Dict[str, Any]])[source]

Bases: ConfigReader, PoseImporterMixin

Importing SLEAP pose-estimation data into SimBA project in H5 format

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • data_folder (str) – Path to folder containing SLEAP data in H5 format.

  • id_lst (List[str]) – Animal names. This will be ignored in one animal projects and default to Animal_1.

  • interpolation_setting (Optional[Dict[str, str]]) – Dict defining the type and method to use to perform interpolation {‘type’: ‘animals’, ‘method’: ‘linear’}.

  • smoothing_settings (Optional[Dict[str, Union[str, int]]]) – Dictionary defining the pose estimation smoothing method {‘time_window’: 500, ‘method’: ‘gaussian’}.

Note

Multi-animal import tutorial.

References

1

Pereira et al., SLEAP: A deep learning system for multi-animal pose tracking, Nature Methods, 2022.

>>> sleap_h5_importer = SLEAPImporterH5(config_path=r'project_folder/project_config.ini', data_folder=r'data_folder', actor_IDs=['Termite_1', 'Termite_2', 'Termite_3', 'Termite_4', 'Termite_5'], interpolation_settings="Body-parts: Nearest", smoothing_settings = {'Method': 'Savitzky Golay', 'Parameters': {'Time_window': '200'}})
>>> sleap_h5_importer.run()

Import SLEAP SLP pose-estimation data

class simba.pose_importers.sleap_slp_importer.SLEAPImporterSLP(project_path: Union[str, PathLike], data_folder: Union[str, PathLike], id_lst: List[str], interpolation_settings: Optional[Dict[str, str]] = None, smoothing_settings: Optional[Dict[str, Any]] = None)[source]

Bases: ConfigReader, PoseImporterMixin

Class for importing SLEAP pose-estimation data into a SimBA project.

Note

Importing SLEAP .SLP files into SimBA come at long runtimes. For fater runtimes, use simba.pose_importers.sleap_h5_importer.SLEAPImporterH5() or simba.pose_importers.sleap_csv_importer.SLEAPImporterCSV()

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • data_folder (str) – Path to folder containing SLEAP data in csv format.

  • id_lst (List[str]) – Animal names. This will be ignored in one animal projects and default to Animal_1.

  • interpolation_setting (Optional[Dict[str, str]]) – Dict defining the type and method to use to perform interpolation {‘type’: ‘animals’, ‘method’: ‘linear’}.

  • smoothing_settings (Optional[Dict[str, Union[str, int]]]) – Dictionary defining the pose estimation smoothing method {‘time_window’: 500, ‘method’: ‘gaussian’}.

Example

>>> slp_importer = SLEAPImporterSLP(project_path="MyConfigPath", data_folder=r'MySLPDataFolder', actor_IDs=['Mouse_1', 'Mouse_2'], interpolation_settings="Body-parts: Nearest", smoothing_settings = {'Method': 'Savitzky Golay', 'Parameters': {'Time_window': '200'}})
>>> slp_importer.run()

References

1

Pereira et al., SLEAP: A deep learning system for multi-animal pose tracking, Nature Methods, 2022.

Import APT TRK pose-estimation data

class simba.pose_importers.trk_importer.TRKImporter(config_path: str, data_path: str, animal_id_lst: list, interpolation_method: str, smoothing_settings: dict)[source]

Bases: ConfigReader

Import DLC H5 files

class simba.pose_importers.madlc_importer.MADLCImporterH5(config_path: Union[str, PathLike], data_folder: Union[str, PathLike], file_type: typing_extensions.Literal['skeleton', 'box', 'ellipse'], id_lst: List[str], interpolation_settings: Optional[Dict[str, str]] = None, smoothing_settings: Optional[Dict[str, Any]] = None)[source]

Bases: ConfigReader, PoseImporterMixin

Importing multi-animal deeplabcut (maDLC) pose-estimation data (in H5 format) into a SimBA project in parquet or CSV format.

Parameters

  • config_path (str) – path to SimBA project config file in Configparser format

  • data_folder (str) – Path to folder containing maDLC data in .h5 format.

  • file_type (str) – Method used to perform pose-estimation in maDLC. OPTIONS: skeleton, box, ellipse.

  • id_lst (List[str]) – Names of animals.

  • interpolation_setting (Optional[Dict[str, str]]) – Dict defining the type and method to use to perform interpolation {‘type’: ‘animals’, ‘method’: ‘linear’}.

  • smoothing_settings (Optional[Dict[str, Union[str, int]]]) – Dictionary defining the pose estimation smoothing method {‘time_window’: 500, ‘method’: ‘gaussian’}.

Note

Multi-animal import tutorial.

Examples

>>> _ = MADLCImporterH5(config_path=r'MyConfigPath', data_folder=r'maDLCDataFolder', file_type='ellipse', id_lst=['Animal_1', 'Animal_2'], interpolation_settings={'type': 'animals', 'method': 'linear'}, smoothing_settings={'time_window': 500, 'method': 'gaussian'}).run()

References

1

Lauer et al., Multi-animal pose estimation, identification and tracking with DeepLabCut, Nature Methods, 2022.

Reset pose

class simba.pose_processors.pose_reset.PoseResetter(master: Optional[Toplevel] = None)[source]

Bases: object

Launch GUI for deleting all user-defined pose-estimation schematics, diagrams and other settings from the SimBA installation.

Parameters

master (Optional[TopLevel]) – Tkinter TopLevel window. Default: None.

Examples

>>> _ = PoseResetter(master=None)

Remove key-points

class simba.pose_processors.remove_keypoints.KeypointRemover(data_folder: str, pose_tool: str, file_format: str)[source]

Bases: object

Remove pose-estimated keypoints from data in CSV or H5 format.

Parameters

  • data_folder (str) – Path to directory containing pose-estiation CSV or H5 data

  • file_format (str) – File type of pose-estimation data.

  • pose_tool (str) – Tool used to perform pose-estimation. E.g., DLC or maDLC

GitHub tutorial/documentation.

Examples

>>> keypoint_remover = KeypointRemover(data_folder="MyDataFolder", pose_tool='maDLC', file_format='h5')
>>> keypoint_remover.run(bp_to_remove_list=['Nose_1, Nose_2'])

Re-organize key-points

class simba.pose_processors.reorganize_keypoint.KeypointReorganizer(data_folder: str, pose_tool: str, file_format: Optional[str] = None)[source]

Bases: object

Re-organizing the order of pose-estimated keypoints in directory containing CSV or H5 format files.

Parameters

  • data_folder (str) – Path to directory containing pose-estiation CSV or H5 data

  • pose_tool (str) – Tool used to perform pose-estimation. E.g., ‘DLC’ or ‘maDLC’.

  • file_format (str) – File type of pose-estimation data.

Note

GitHub tutorial/documentation.

Examples

>>> keypoint_reorganizer = KeypointReorganizer(data_folder="test_data/misc_test_files", pose_tool='maDLC', file_format='h5')
>>> keypoint_reorganizer.run(animal_list=['UM', 'LM', 'LM', 'UM', 'LM', 'UM', 'LM', 'LM', 'UM', 'LM', 'UM', 'UM', 'UM', 'UM', 'LM', 'LM'], bp_lst=['Lateral_left', 'Nose', 'Tail_base', 'Lateral_right', 'Ear_right', 'Center', 'Nose', 'Ear_left', 'Ear_right', 'Center', 'Tail_end', 'Ear_left', 'Tail_base', 'Lateral_left', 'Tail_end', 'Lateral_right'])
>>> keypoint_reorganizer = KeypointReorganizer(data_folder="test_data/misc_test_files", pose_tool='DLC', file_format='csv')
>>> keypoint_reorganizer.run(bp_lst=['Ear_left_1', 'Ear_right_1', 'Nose_1', 'Center_1', 'Lateral_left_1', 'Lateral_right_1', 'Tail_base_1', 'Ear_left_2', 'Ear_right_2', 'Nose_2', 'Center_2', 'Lateral_left_2', 'Lateral_right_2', 'Tail_base_2'], animal_list=None)

Reverse pose

Pose import mixins

class simba.mixins.pose_importer_mixin.PoseImporterMixin[source]

Bases: object

Methods for importing pose-estimation data.

find_data_files(dir: Union[str, PathLike], extensions: List[str]) → List[str][source]

Search for files with specific extensions in a given directory and return their paths.

Parameters

  • dir (Union[str, os.PathLike]) – The directory to search for files. It can be a string or a path-like object.

  • extensions (List[str]) – A list of file extensions to look for.

Returns

A list of paths to the files with the specified extensions found in the directory.

Raises

NoDataError – If no files with the specified extensions are found in the directory.

initialize_multi_animal_ui(animal_bp_dict: dict, video_info: dict, data_df: DataFrame, video_path: Union[str, PathLike], initial_frame_no: Optional[int] = None)[source]
Parameters

initial_frame_no (Optional[int]) – Frame index to start the assignment UI on. Useful for jumping directly to a frame where all animals are simultaneously detected, so the user doesn’t have to press “x” repeatedly to find one. If None (default) the UI starts at frame 0, preserving previous behaviour. Clamped to the valid range [0, len(data_df) - 1]; out-of-range values emit a FrameRangeWarning and fall back to 0.

Given a list of paths to video files and a separate list of paths to data files, create a dictionary pairing each video file to a datafile based on the file names of the video and data file.

Parameters

  • data_paths (List[str]) – List of full paths to data files, e.g., CSV or H5 files.

  • video_paths (List[str]) – List of full paths to video files, e.g., MP4 or AVI files.

  • str_splits (Optional[List[str]]) – Optional list of substrings that the data_paths would need to be split at in order to find a matching video name. E.g., [‘dlc_resnet50’].

  • filename_cleaning_func (Optional[object]) – Optional filename cleaning function that the data_paths filenames would have to pass through in order to find a matching video name. E.g., simba.utils.read_write.clean_sleap_filename(filepath).

  • raise_error (bool) – If True, raises an error if a video file representing a data file doesn’t exist. If False, return None for the specific key.

Returns dict

Dictionary with the data/file name as keys, and the video and data paths as values.

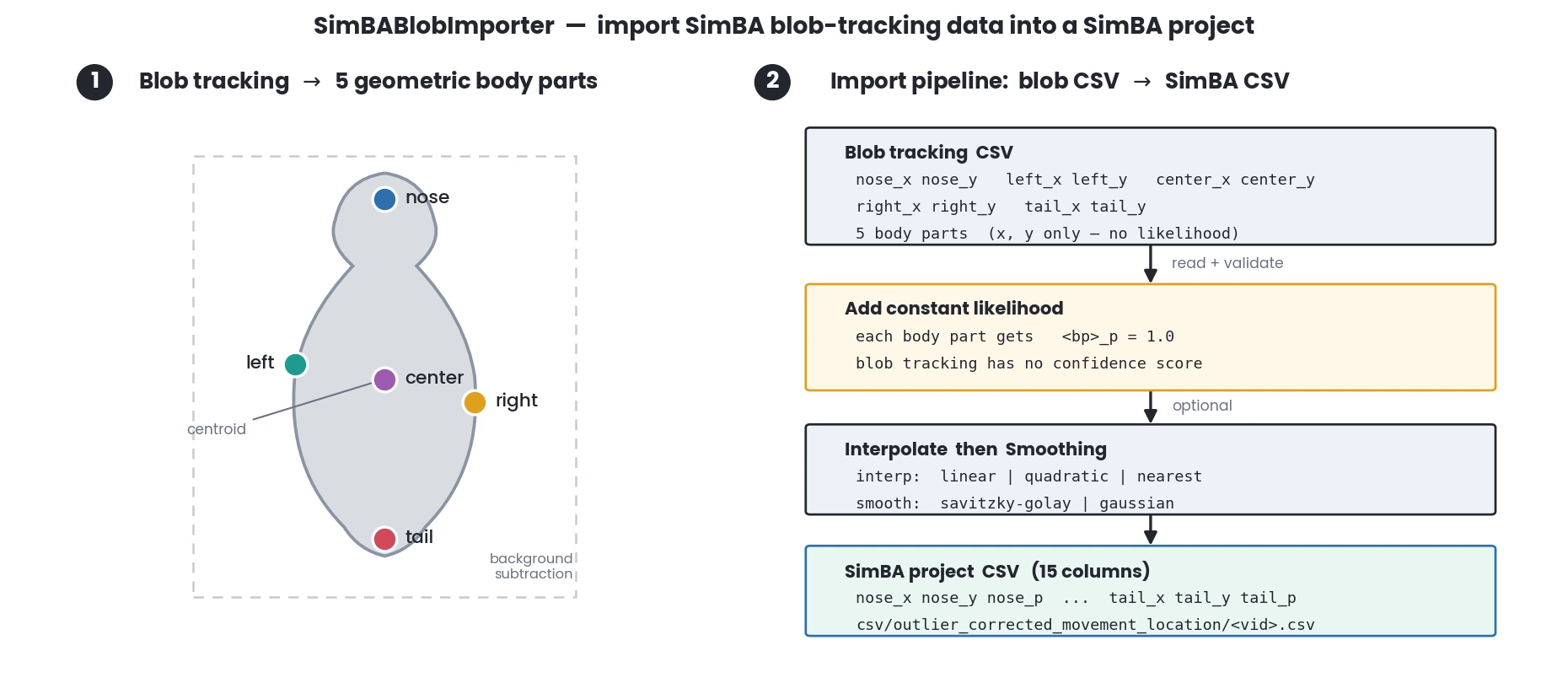

Import SimBA blob tracking as pose

Import blob tracking data generated by SimBA’s blob tracking tools into a SimBA project.

This class imports CSV files containing blob tracking data (with columns for nose, tail, center, left, and right body parts) and converts them into SimBA’s standard pose-estimation format. The imported data can optionally be interpolated and smoothed.

Note

The project must be configured as a SimBA blob project (pose setting must be set to ‘simba_blob’). The input CSV files must contain the following required fields: nose_x, nose_y, left_x, left_y, center_x, center_y, right_x, right_y, tail_x, tail_y.

See also

To generate blob tracking data, see simba.video_processors.blob_tracking_executor.BlobTrackingExecutor(). To visualize blob tracking results, see simba.plotting.blob_visualizer.BlobVisualizer().

param Union[str, os.PathLike] config_path

Path to the SimBA project configuration file.

param Union[str, os.PathLike] data_path

Path to a directory containing blob tracking CSV files, or a single CSV file.

param Optional[Union[str, os.PathLike]] save_dir

Directory where imported files will be saved. If None, saves to the project’s outlier_corrected directory. Default: None.

param Optional[dict] smoothing_settings

Dictionary with smoothing settings. Must contain ‘method’ (‘savitzky-golay’ or ‘gaussian’) and ‘time_window’ (positive integer). If None, no smoothing is applied. Default: None.

param Optional[dict] interpolation_settings

Dictionary with interpolation settings. Must contain ‘method’ (‘linear’, ‘quadratic’, or ‘nearest’) and ‘type’ (‘body-parts’ or ‘animals’). If None, no interpolation is applied. Default: None.

param Optional[bool] verbose

If True, prints progress messages. Default: True.

example

>>> r = SimBABlobImporter(config_path=r"C:/troubleshooting/simba_blob_project/project_folder/project_config.ini", data_path=r'C:/troubleshooting/simba_blob_project/data')
>>> r.run()
>>> r = SimBABlobImporter(config_path=r"C:/troubleshooting/simba_blob_project/project_folder/project_config.ini",
...                       data_path=r'C:/troubleshooting/simba_blob_project/data',
...                       smoothing_settings={'method': 'savitzky-golay', 'time_window': 100},
...                       interpolation_settings={'method': 'nearest', 'type': 'body-parts'})
>>> r.run()

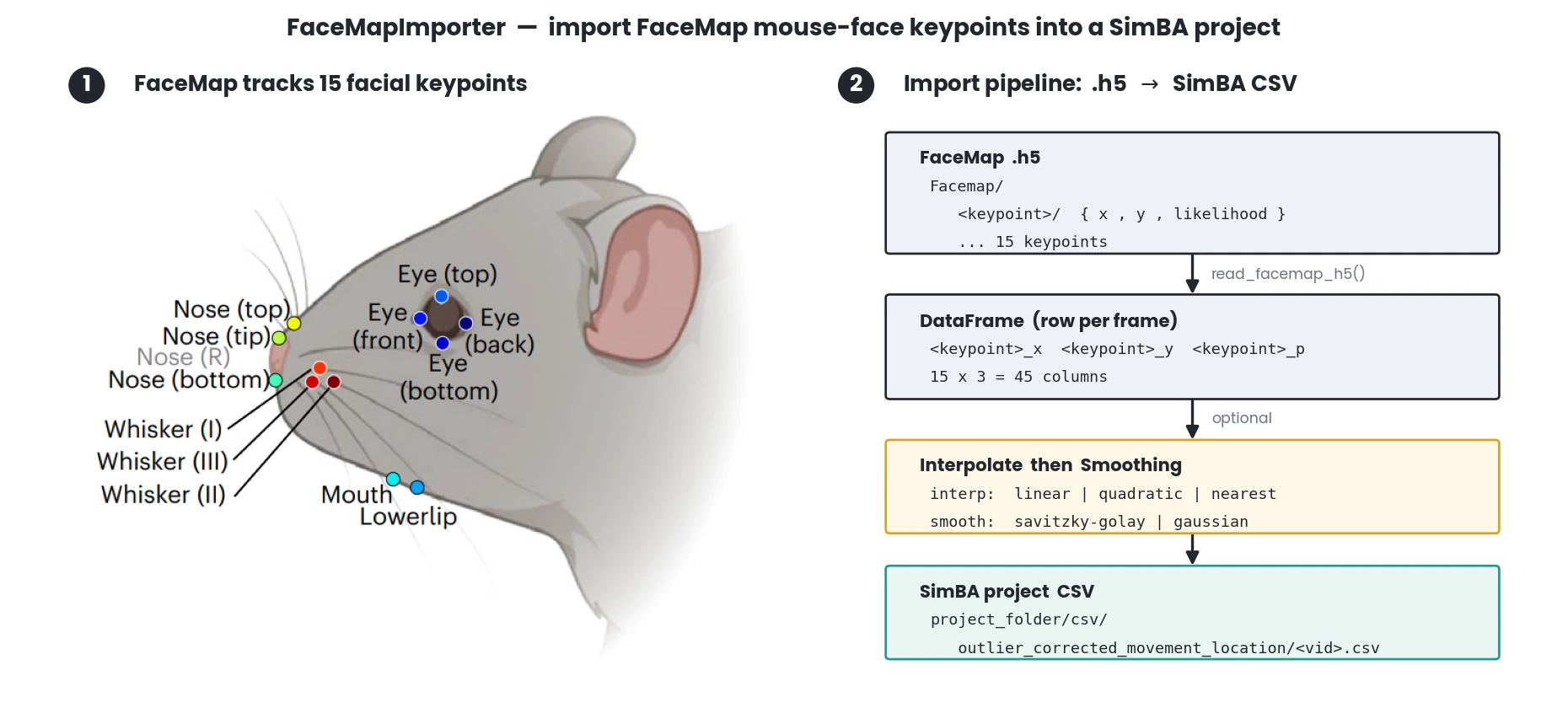

Import FaceMap body-part tracking

example

>>> r = FaceMapImporter(config_path=r"C:    roubleshooting

acemap_projectproject_folderproject_config.ini”, data_path=r’C: roubleshooting acemap_projectdata’, smoothing_settings={‘method’: ‘savitzky-golay’, ‘time_window’: 100})

>>> r.run()

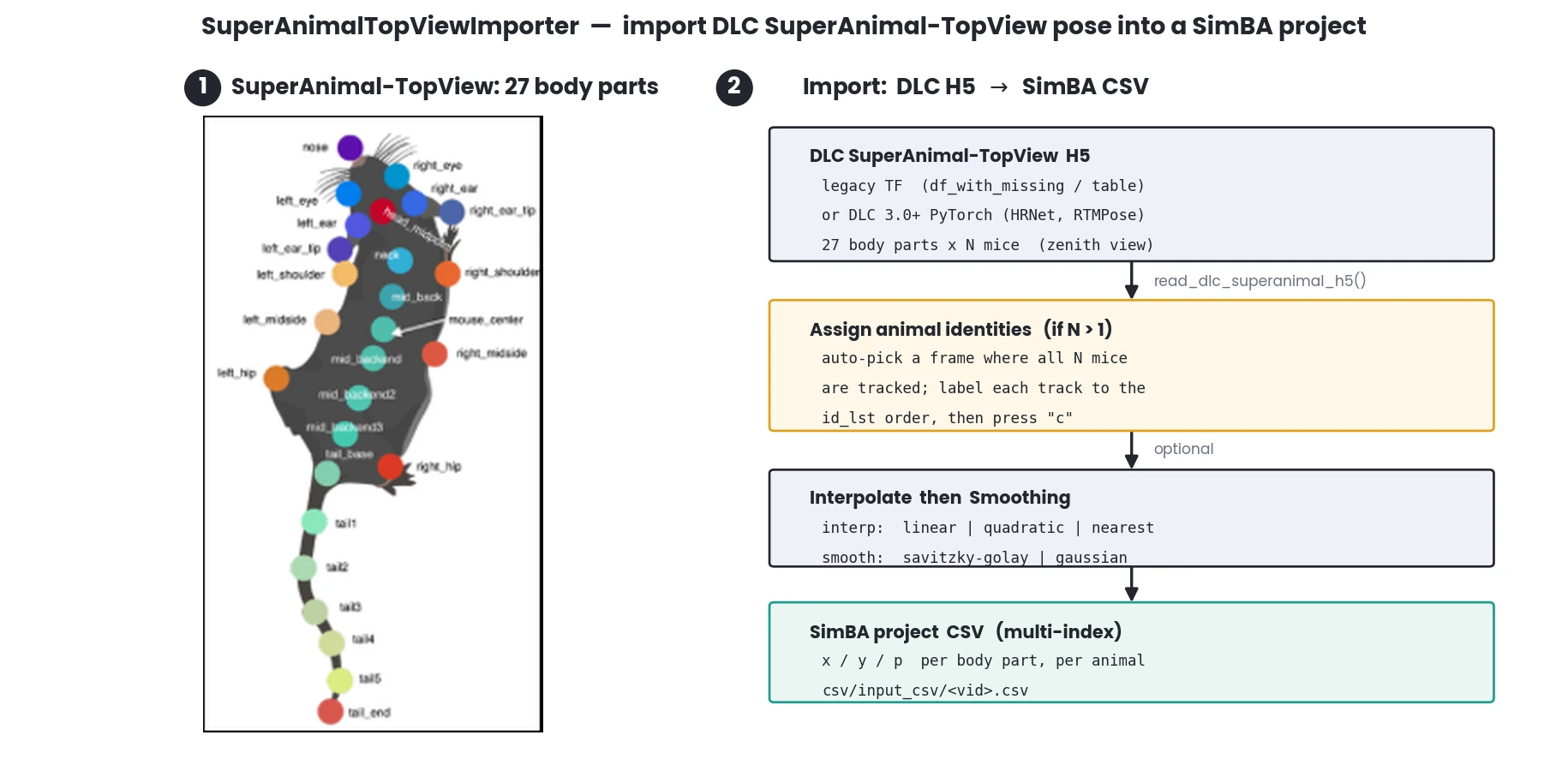

Import SuperAnimal-TopView Mouse body-part tracking

Import SuperAnimal-TopView mouse data to SimBA

Note

For more information see the DeepLabCutModelZoo-SuperAnimal-TopViewMouse on huggingface https://huggingface.co/mwmathis/DeepLabCutModelZoo-SuperAnimal-TopViewMouse

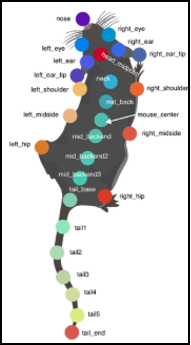

Trackes 27 body-parts on one or more mice recorded from zenith.

Supports both DLC H5 layouts: the legacy TensorFlow backend (df_with_missing / table) and the modern DLC 3.0+ PyTorch backend (HRNet, RTMPose), including multi-animal tracked outputs ending in _el.h5 / _full.h5. H5 column order is assumed to follow the SuperAnimal-TopView 27 body-part schema, with animals in the order supplied via id_lst (positional mapping).

_images/superanimal_topview.png
param config_path

path to SimBA project config file in Configparser format

param str data_folder

Path to folder containing SuperAnimal data in .h5 format.

param List[str] id_lst

Names of animals.

param Optional[Dict[str, str]] interpolation_setting

Dict defining the type and method to use to perform interpolation {‘type’: ‘animals’, ‘method’: ‘linear’}.

param Optional[Dict[str, Union[str, int]]] smoothing_settings

Dictionary defining the pose estimation smoothing method {‘time_window’: 500, ‘method’: ‘gaussian’}.

param Optional[int] initial_frame_no

Frame index at which to open the multi-animal identity-assignment UI. Only used when len(id_lst) > 1.

  • If an integer is passed, it is used directly (and must be >= 0 and strictly less than the frame count of every H5 file in data_folder; otherwise an InvalidInputError is raised by __init__).

  • If None (default) in multi-animal mode, the importer attempts to auto-detect, per video, a frame where all len(id_lst) animals are simultaneously tracked (via simba.utils.lookups.find_best_multi_animal_assignment_frame()). The UI opens on that frame, so the user only needs to press “c” once. If no such frame exists (or detection fails for any reason) the UI falls back to frame 0 as in earlier SimBA versions.

  • Single-animal imports ignore this argument entirely.

references
1

Ye, Shaokai, Anastasiia Filippova, Jessy Lauer, et al. “SuperAnimal Pretrained Pose Estimation Models for Behavioral Analysis.” Nature Communications 15, no. 1 (2024): 5165. https://doi.org/10.1038/s41467-024-48792-2.

2

mwmathis lab on huggingface - https://huggingface.co/mwmathis/.

example

>>> importer = SuperAnimalTopViewImporter(config_path=r"C:  roubleshooting\super_animal_import\project_folder\project_config.ini", data_folder=r'C: roubleshooting\super_animal_import\data_files', id_lst=['Animal_1'])
>>> importer.run()
example multi-animal with a known good frame

>>> importer = SuperAnimalTopViewImporter(config_path=r"...\project_config.ini", data_folder=r'...\data_files', id_lst=['mouse_1', 'mouse_2', 'mouse_3', 'mouse_4', 'mouse_5'], initial_frame_no=3313)
>>> importer.run()

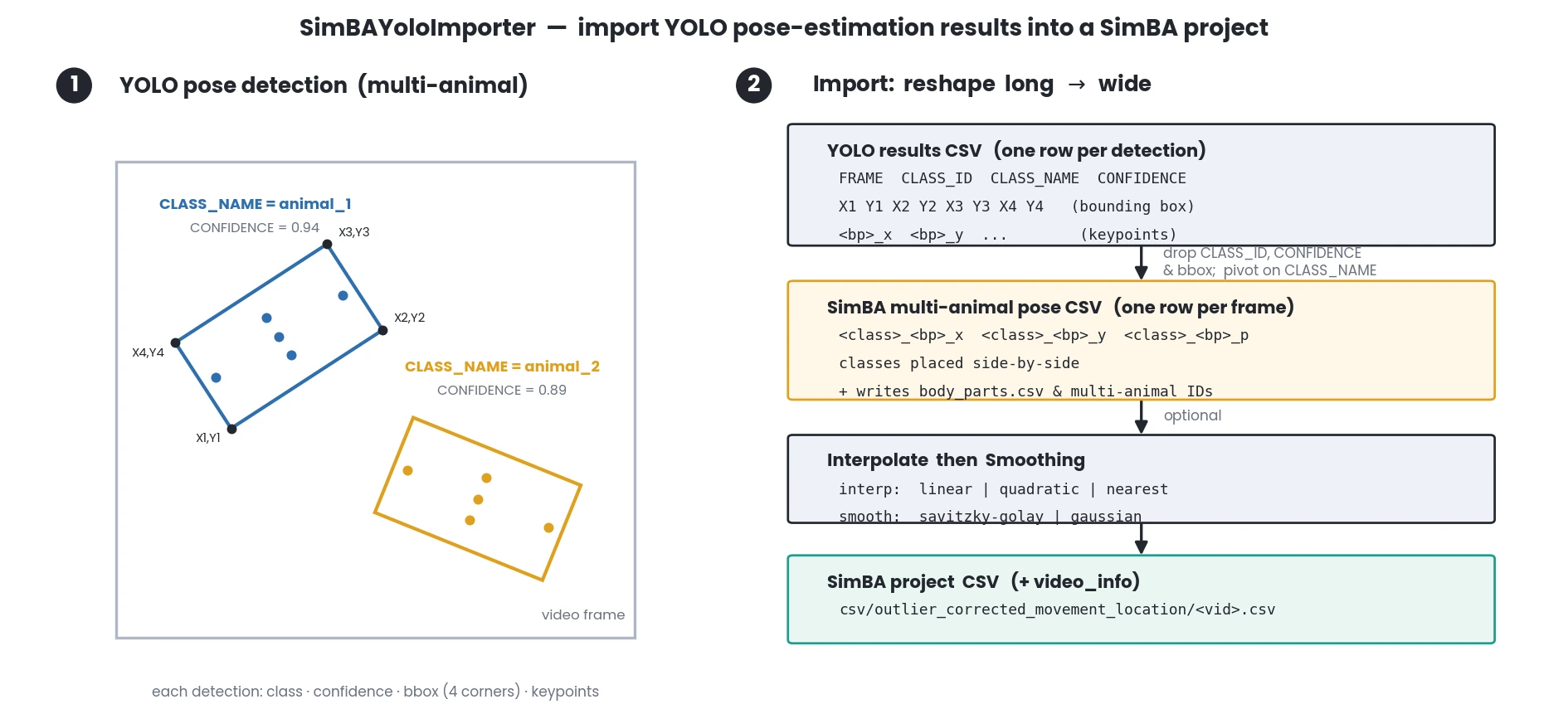

Import YOLO pose-estimation tracking (unique individuals, non-track based, only)

Import YOLO pose estimation results into SimBA project format with optional interpolation and smoothing.

See also

YOLO pose data can be created with simba.model.yolo_pose_inference.YOLOPoseInference() or simba.model.yolo_pose_track_inference.YOLOPoseTrackInference().

param Union[str, os.PathLike] config_path

Path to SimBA project config file.

param Union[str, os.PathLike] data_dir

Directory containing YOLO results CSV files.

param bool verbose

If True, prints progress information. Default: False.

param Optional[float] px_per_mm

Pixels per millimeter for the videos. If provided, updates project video info.

param Optional[tuple] resolution

Video resolution as (width, height). Default: (927, 927).

param Optional[float] fps

Video frames per second. Default: 927.

param Optional[bool] add_to_video_info

If True, adds video metadata to project video_info.csv. Default: True.

param Optional[Dict[str, str]] interpolation_settings

Dictionary with ‘method’ (‘linear’, ‘quadratic’, ‘nearest’) and ‘type’ (‘body-parts’, ‘animals’). If None, no interpolation applied.

param Optional[Dict[str, str]] smoothing_settings

Dictionary with ‘method’ (‘savitzky-golay’, ‘gaussian’) and ‘time_window’ (int, milliseconds). If None, no smoothing applied.

example
>>> importer = SimBAYoloImporter(data_dir='yolo_results/', config_path='project_config.ini', verbose=True, px_per_mm=1.43, fps=30)
>>> importer.run()
example
>>> # With interpolation and smoothing
>>> interpolation = {'method': 'linear', 'type': 'body-parts'}
>>> smoothing = {'method': 'savitzky-golay', 'time_window': 200}
>>> importer = SimBAYoloImporter(data_dir='yolo_results/', config_path='project_config.ini', interpolation_settings=interpolation, smoothing_settings=smoothing)
>>> importer.run()
