Feature extraction methods

class simba.mixins.feature_extraction_mixin.FeatureExtractionMixin(config_path=None)[source]

Methods for featurizing pose-estimation data.

Parameters: config_path (Optional[configparser.Configparser]) – Optional path to SimBA project_config.ini

static angle3pt(ax, ay, bx, by, cx, cy)[source]

Compute 3-point angle using thre body-parts.

See also

For multicore numba based method across multiple observations, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized(). For GPU acceleration, use simba.data_processors.cuda.statistics.get_3pt_angle().

Example

>>> FeatureExtractionMixin.angle3pt(ax=122.0, ay=198.0, bx=237.0, by=138.0, cx=191.0, cy=109)
>>> 59.78156901181637

static angle3pt_vectorized(data)[source]

Numba accelerated compute of frame-wise 3-point angles.

See also

For GPU acceleration, use simba.data_processors.cuda.statistics.get_3pt_angle() for single frame alternative, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt()

Parameters: data (ndarray) – 2D numerical array with frame number on x and [ax, ay, bx, by, cx, cy] on y.
Returns: 1d float numerical array of size data.shape[0] with angles.
Return type: ndarray
Examples

>>> coordinates = np.random.randint(1, 10, size=(6, 6))
>>> FeatureExtractionMixin.angle3pt_vectorized(data=coordinates)
>>> [ 67.16634582,   1.84761027, 334.23067238, 258.69006753, 11.30993247, 288.43494882]

static bodypart_distance(bp1_coords, bp2_coords, px_per_mm=1.0, in_centimeters=False)[source]

Calculate frame-wise Euclidean distances between two sets of body part coordinates.

The function uses the standard Euclidean distance formula: distance = √((x₁-x₂)² + (y₁-y₂)²) / px_per_mm

See also

Wrapper function (ensuring data validity) for the underlying implementation simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance(). For GPU CuPy solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy(). For GPU numba CUDA solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cuda(). For Euclidean distance between one moving and one static target, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance_roi().

Parameters

bp1_coords (np.ndarray) – First body part coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame.
bp2_coords (np.ndarray) – Second body part coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame. Must have the same number of frames as bp1_coords.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive. Default: 1.0.
in_centimeters (bool) – If True, returns distances in centimeters. If False, returns distances in millimeters. Default: False.

Returns

Array of Euclidean distances with shape (n_frames,) in the specified units as float32.

Return type

np.ndarray[np.float32]

Example

>>> bp1_coords = np.random.randint(0, 500, size=(1000, 2))
>>> bp2_coords = np.random.randint(0, 500, size=(1000, 2))
>>> FeatureExtractionMixin().bodypart_distance(bp1_coords=bp1_coords, bp2_coords=bp2_coords, px_per_mm=1.0, in_centimeters=False)

static cdist(array_1, array_2)[source]

Analogue of meth:scipy.cdist for two 2D arrays. Use to calculate Euclidean distances between all coordinates in one array and all coordinates in a second array. E.g., computes the distances between all body-parts of one animal and all body-parts of a second animal. Acceleration though numba.

See also

For GPU acceleration, use cupyx.scipy.spatial.distance.cdist

Parameters

array_1 (np.ndarray) – 2D array of body-part coordinates
array_2 (np.ndarray) – 2D array of body-part coordinates

Returns

2D array of Euclidean distances between body-parts in array_1 and array_2

Return type

np.ndarray

Example

>>> array_1 = np.random.randint(1, 10, size=(3, 2)).astype(np.float32)
>>> array_2 = np.random.randint(1, 10, size=(3, 2)).astype(np.float32)
>>> FeatureExtractionMixin.cdist(array_1=array_1, array_2=array_2)
>>> [[7.07106781, 1.        , 3.60555124],
>>> [3.60555124, 6.3245554 , 2.        ],
>>>  [3.1622777 , 5.38516474, 4.12310553]])

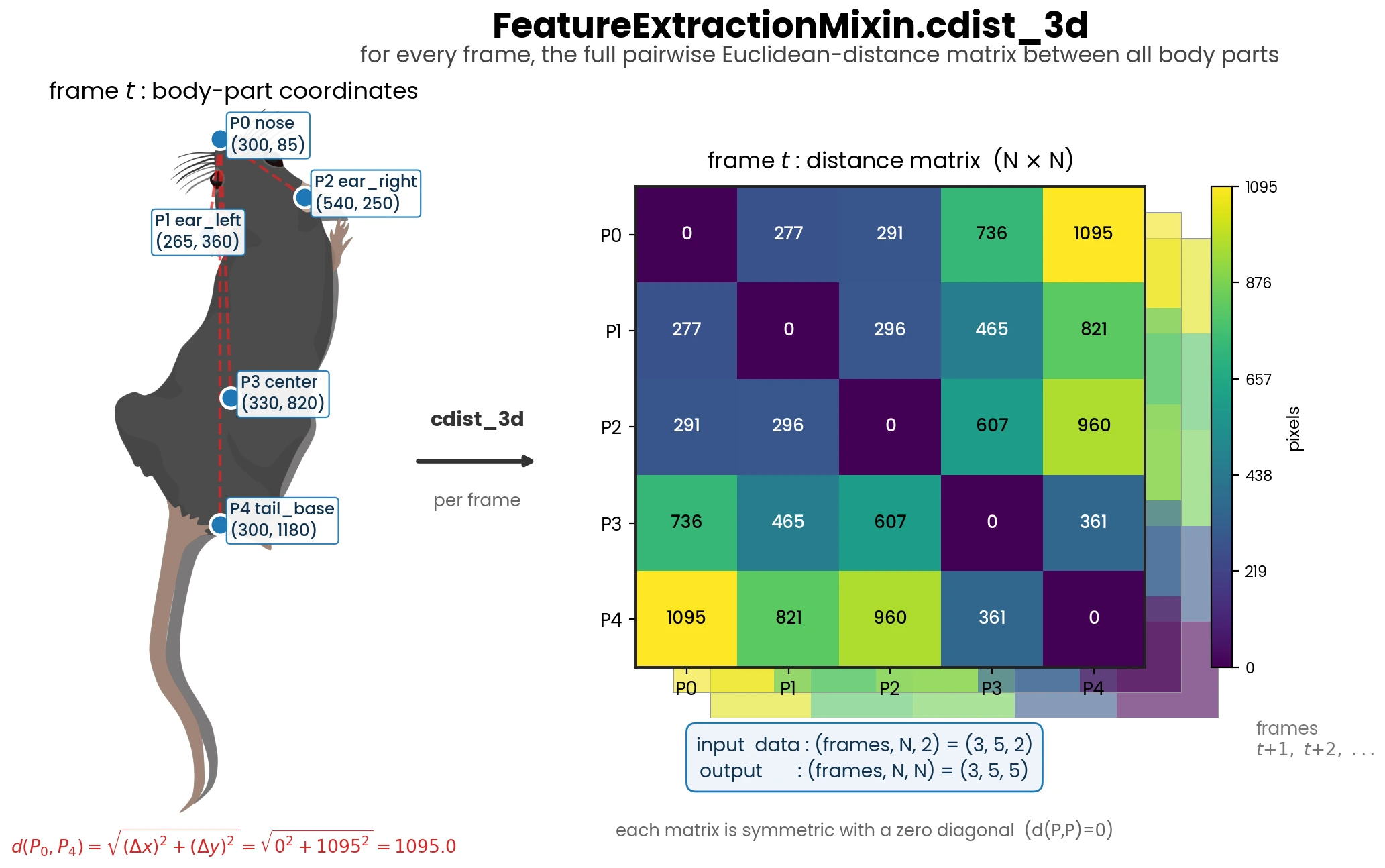

static cdist_3d(data)[source]

Jitted analogue of meth:scipy.cdist for 3D array. Use to calculate Euclidean distances between all coordinates in of one array and itself.

Parameters: data (np.ndarray) – 3D array of body-part coordinates of size len(frames) x -1 x 2.
Return np.ndarray: 3D array of size data.shape[0], data.shape[1], data.shape[1].

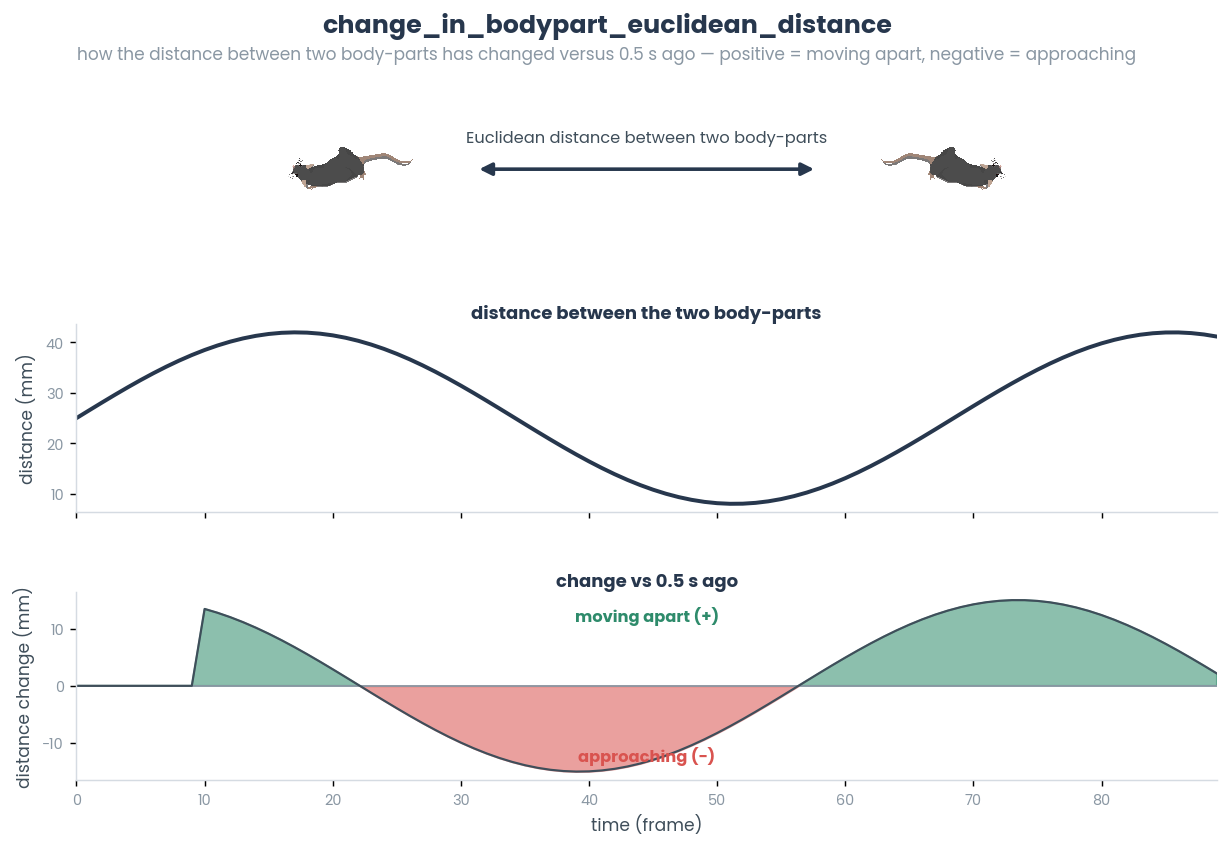

change_in_bodypart_euclidean_distance(location_1, location_2, fps, px_per_mm, time_windows=array([0.2, 0.4, 0.8, 1.6]))[source]

Computes the difference between the distance of two body-parts in the current frame versus N.N seconds ago. Used for computing if animal body-parts are traveling away from each other (positive values) or towards each other (negative values) within defined time-windows.

Parameters

location_1 (np.ndarray) – 2D array (n_frames, 2) with the x,y positions of the first body-part.
location_2 (np.ndarray) – 2D array (n_frames, 2) with the x,y positions of the second body-part.
fps (int) – Frame-rate of the video.
px_per_mm (float) – Pixels per millimeter conversion factor.
time_windows (np.ndarray) – Reference time-windows (in seconds) to compare the current distance against.

Returns

Array of shape (n_frames, len(time_windows)); positive = parts moved apart, negative = moved closer.

Return type

np.ndarray

Example

>>> loc1 = np.random.randint(0, 500, (200, 2)).astype(np.float64)
>>> loc2 = np.random.randint(0, 500, (200, 2)).astype(np.float64)
>>> FeatureExtractionMixin().change_in_bodypart_euclidean_distance(location_1=loc1, location_2=loc2, fps=25, px_per_mm=2.0)

check_directionality_cords()[source]

Helper to check if ear and nose body-parts are present within the pose-estimation data.

Return dict: Body-part names of ear and nose body-parts as values and animal names as keys. If empty, ear and nose body-parts are not present within the pose-estimation data

check_directionality_viable()[source]

Check if it is possible to calculate directionality statistics.

Specifically, checks if nose and coordinates from pose estimation has to be present

Return bool: If True, directionality is viable. Else, not viable.
Return np.ndarray nose_coord: If viable, then 2D array with coordinates of the nose in all frames. Else, empty array.
Return np.ndarray ear_left_coord: If viable, then 2D array with coordinates of the left ear in all frames. Else, empty array.
Return np.ndarray ear_right_coord: If viable, then 2D array with coordinates of the right ear in all frames. Else, empty array.

static convex_hull_calculator_mp(arr, px_per_mm)[source]

Calculate single frame convex hull perimeter length in millimeters.

Note

For acceptable run-time, call using parallel processing.

See also

For numba CPU based acceleration, use simba.feature_extractors.perimeter_jit.jitted_hull(). For multicore based acceleration, use simba.mixins.geometry_mixin.GeometryMixin.bodyparts_to_polygon(). For numba CUDA based acceleration, use simba.data_processors.cuda.geometry.get_convex_hull(),

Parameters

arr (np.ndarray) – 2D array of size len(body-parts) x 2.
px_per_mm (float) – Video pixels per millimeter.

Returns

The length of the animal perimeter in millimeters.

Return type

float

Example

>>> coordinates = np.random.randint(1, 200, size=(6, 2)).astype(np.float32)
>>> FeatureExtractionMixin.convex_hull_calculator_mp(arr=coordinates, px_per_mm=4.56)
>>> 98.6676814218373

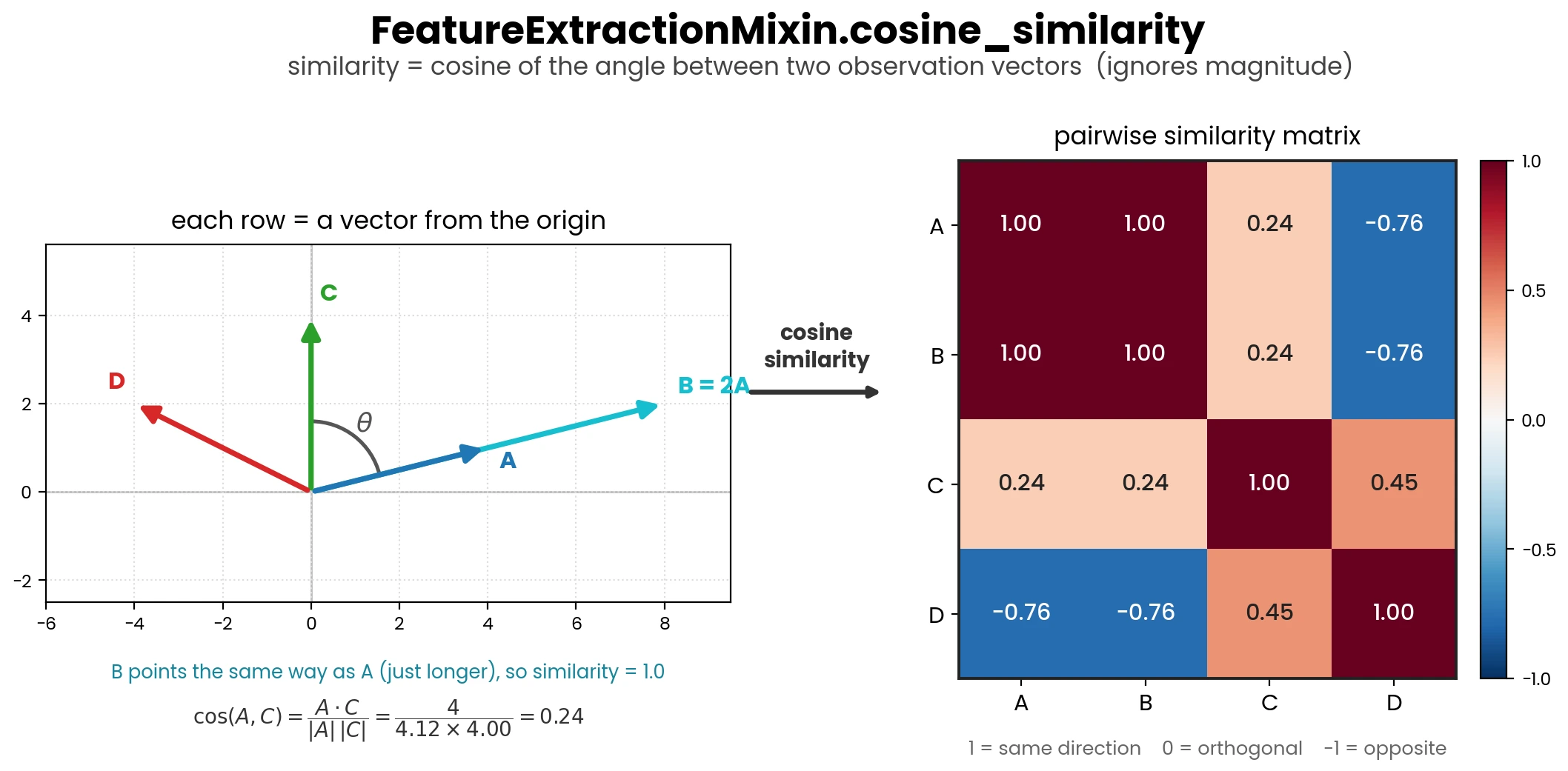

static cosine_similarity(data)[source]

Jitted analogue of sklearn.metrics.pairwise import cosine_similarity. Similar to scipy.cdist. calculates the cosine similarity between all pairs in 2D array.

Parameters: data (np.ndarray) – 2D array of observations.
Returns: Matrix representing the cosine similarity between all observations in data.
Return type: np.ndarray
Example

>>> data = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]]).astype(np.float32)
>>> FeatureExtractionMixin().cosine_similarity(data=data)
>>> [[1.0, 0.974, 0.959][0.974,  1.0, 0.998] [0.959, 0.998, 1.0]

static count_values_in_range(data, ranges)[source]

Jitted helper finding count of values that falls within ranges. E.g., count number of pose-estimated body-parts that fall within defined bracket of probabilities per frame.

Parameters

data (np.ndarray) – 2D numpy array with frames on X.
ranges (np.ndarray) – 2D numpy array representing the brackets. E.g., [[0, 0.1], [0.1, 0.5]]

Returns

2D numpy array of size data.shape[0], ranges.shape[1]

Return type

np.ndarray

Example

>>> FeatureExtractionMixin.count_values_in_range(data=np.random.random((3,10)), ranges=np.array([[0.0, 0.25], [0.25, 0.5]]))
>>> [[6, 1], [3, 2],[2, 1]]

static create_shifted_array(data, periods=1)[source]

Create a shifted NumPy array with edge values filled from original data.

This method mirrors create_shifted_df() shift behavior, but for NumPy arrays. It returns only shifted values (not concatenated with original input values).

See also

For pandas DataFrame input with concatenated original and shifted columns, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.create_shifted_df().

Parameters

data (np.ndarray) – Numeric 1D or 2D array with frames on axis 0.
periods (int) – Number of rows to shift. Positive shifts down, negative shifts up.

Returns

Shifted array with the same shape as input (1D input is returned as 2D (n, 1)).

Return type

np.ndarray

Example

>>> arr = np.array([[10], [95], [85]])
>>> FeatureExtractionMixin.create_shifted_array(data=arr, periods=1)
>>> array([[10.], [10.], [95.]])

static create_shifted_df(df, periods=1, suffix='_shifted')[source]

Create dataframe including duplicated shifted (1) columns with _shifted suffix.

See also

For NumPy input and shifted-values-only output, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.create_shifted_array().

Parameters

df (pd.DataFrame) – Dataframe to create additional shifted fields from.
int (periods) – The rows to shift the new fields. 1 denotes that the shifted fields get shifted one row “down”. -1 and the fields would be shifted one row “up”.
suffix (str) – The suffix to add to the new, shifted, fields. Default: “shifted”.

Return pd.DataFrame

Dataframe including original and shifted columns.

Example

>>> df = pd.DataFrame(np.random.randint(0,100,size=(3, 1)), columns=['Feature_1'])
>>> FeatureExtractionMixin.create_shifted_df(df=df)
>>>             Feature_1  Feature_1_shifted
>>>    0         76               76.0
>>>    1         41               76.0
>>>    2         89               41.0

dataframe_gaussian_smoother(df, fps, time_window=100)[source]

Column-wise Gaussian smoothing of dataframe.

Parameters

df (pd.DataFrame) – Dataframe with un-smoothened data.
fps (int) – The frame-rate of the video representing the data.
time_window (int) – Time-window in milliseconds to use for Gaussian smoothing.

Return pd.DataFrame

Dataframe with smoothened data

References

1: Video expected putput.

dataframe_savgol_smoother(df, fps, time_window=150)[source]

Column-wise Savitzky-Golay smoothing of dataframe.

Parameters

df (pd.DataFrame) – Dataframe with un-smoothened data.
fps (int) – The frame-rate of the video representing the data.
time_window (int) – Time-window in milliseconds to use for Gaussian smoothing.

Return pd.DataFrame

Dataframe with smoothened data

References

1: Video expected putput.

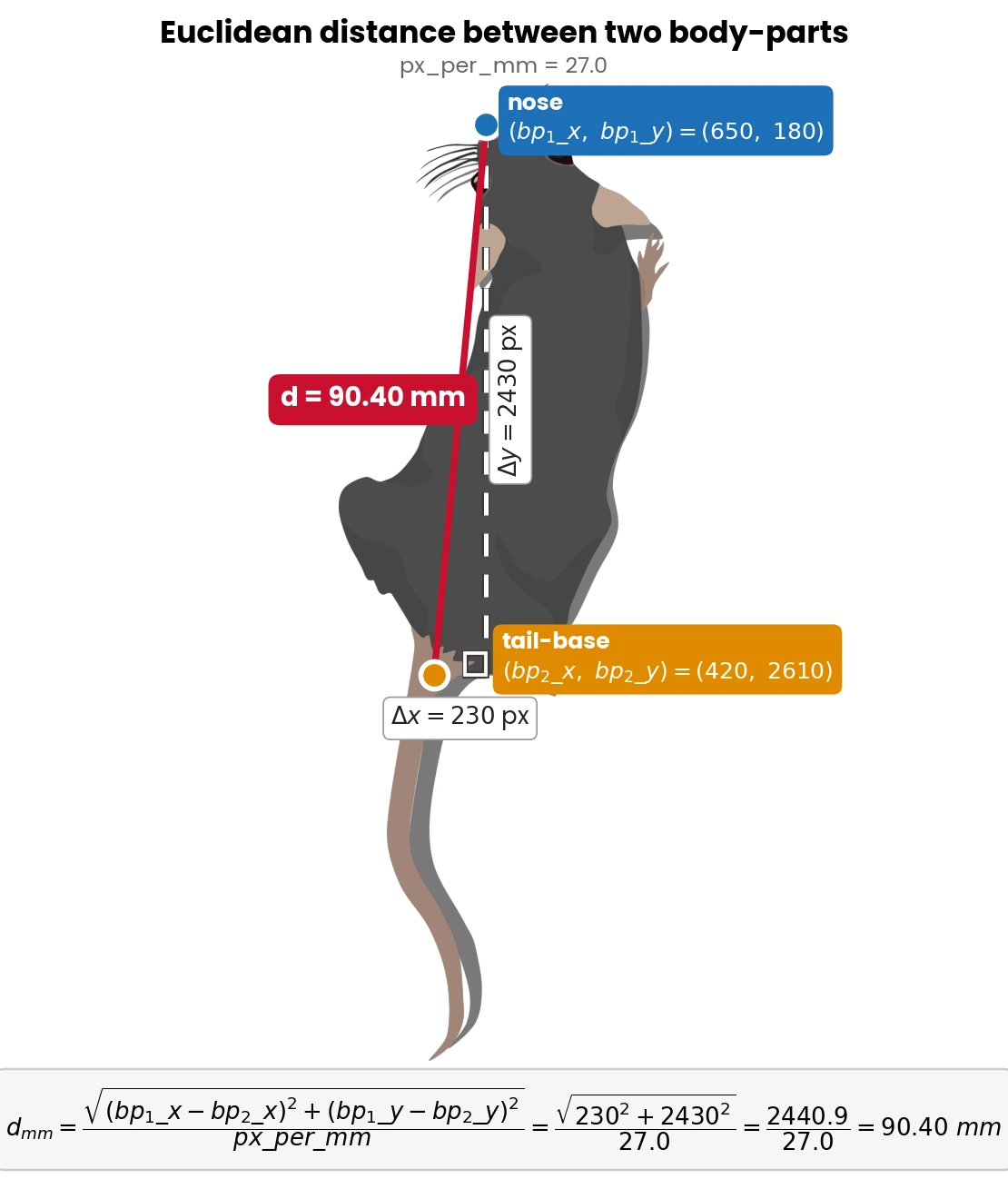

static euclidean_distance(bp_1_x, bp_2_x, bp_1_y, bp_2_y, px_per_mm)[source]

Compute Euclidean distance in millimeters between two body-parts.

Parameters

bp_1_x (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 1 x-coordinates.
bp_2_x (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 2 x-coordinates.
bp_1_y (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 1 y-coordinates.
bp_2_y (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 2 y-coordinates.

Returns

2D array of size len(frames) x 1 with distances between body-part 1 and body-part 2 in millimeters

Return type

np.ndarray

Example

>>> x1, x2 = np.random.randint(1, 10, size=(10, 1)), np.random.randint(1, 10, size=(10, 1))
>>> y1, y2 = np.random.randint(1, 10, size=(10, 1)), np.random.randint(1, 10, size=(10, 1))
>>> FeatureExtractionMixin.euclidean_distance(bp_1_x=x1, bp_2_x=x2, bp_1_y=y1, bp_2_y=y2, px_per_mm=4.56)

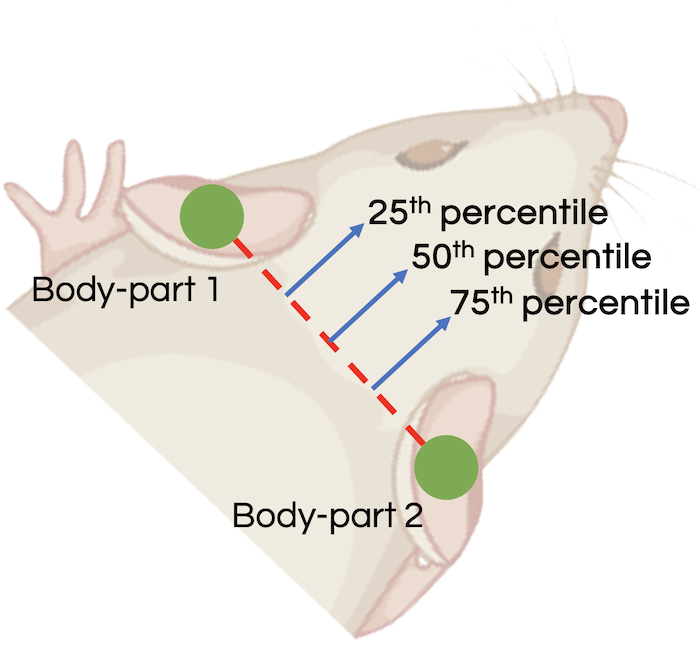

static find_midpoints(bp_1, bp_2, percentile)[source]

Compute the midpoints between two sets of 2D points based on a given percentile.

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.find_midpoints()

Parameters

bp_1 (np.ndarray) – An array of 2D points representing the first set of points. Rows represent frames. First column represent x coordinates. Second column represent y coordinates.
bp_2 (np.ndarray) – An array of 2D points representing the second set of points. Rows represent frames. First column represent x coordinates. Second column represent y coordinates.
percentile (float) – The percentile value to determine the distance between the points for calculating midpoints. When set to 0.5 it calculates midpoints at the midpoint of the two points.

Returns

An array of 2D points representing the midpoints between the points in bp_1 and bp_2 based on the specified percentile.

Return type

np.ndarray

Example

>>> bp_1 = np.array([[1, 3], [30, 10]]).astype(np.int64)
>>> bp_2 = np.array([[10, 4], [20, 1]]).astype(np.int64)
>>> FeatureExtractionMixin().find_midpoints(bp_1=bp_1, bp_2=bp_2, percentile=0.5)
>>> [[ 5,  3], [25,  6]]

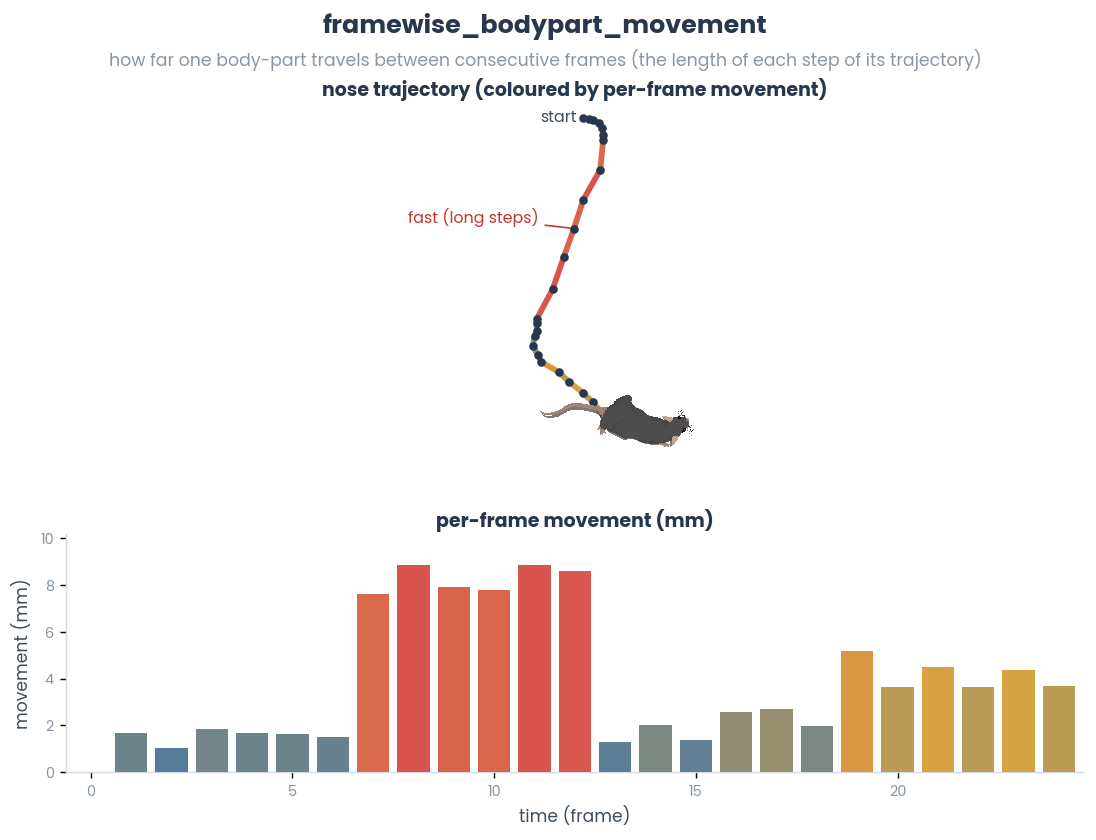

static framewise_bodypart_movement(data, px_per_mm=1, centimeter=False)[source]

Compute frame-wise movement for a single body-part trajectory.

See also

For movement between two distinct body-parts, use func:simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.bodypart_distance. For direct per-frame distance computation between two coordinate arrays, use func:simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance.

Parameters

data (Union[np.ndarray, pd.DataFrame]) – Body-part coordinates with shape (n_frames, 2) where columns represent x and y pixel positions. Accepted as numpy array or pandas DataFrame.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive. Default: 1.
centimeter (bool) – If True, return movement in centimeters. If False, return movement in millimeters. Default: False.

Returns

1D array of frame-wise displacement values with shape (n_frames,).

Return type

np.ndarray

Example

>>> coords = np.array([[10, 10], [13, 14], [13, 20]], dtype=np.float32)
>>> FeatureExtractionMixin.framewise_bodypart_movement(data=coords, px_per_mm=2.0, centimeter=False)

static framewise_euclidean_distance(location_1, location_2, px_per_mm, centimeter)[source]

Compute frame-wise Euclidean distances between two sets of moving 2D locations.

This numba-jitted function efficiently calculates the straight-line distance between corresponding points in two location arrays for each frame. The distances are converted from pixels to real-world units (millimeters or centimeters) using the provided pixel-to-millimeter conversion factor.

Uses the standard Euclidean distance formula: √((x₁-x₂)² + (y₁-y₂)²) / px_per_mm

Note

This function is optimized with numba JIT parallel execution compilation for high performance on large datasets.

See also

For GPU CuPy solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy(). For GPU numba CUDA solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cuda(). For Euclidean distance between one moving and one static target, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance_roi(). For wrapper function ensuring dtypes and data validity in this method, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.bodypart_distance().

Parameters

location_1 (np.ndarray) – First set of 2D coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame.
location_2 (np.ndarray) – Second set of 2D coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame. Must have same shape as location_1.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive.
centimeter (bool) – If True, returns distances in centimeters. If False, returns distances in millimeters. Default is False.

Returns

Array of Euclidean distances with shape (n_frames,).

Return type

np.ndarray

Example

>>> # Calculate distances between two body parts across frames
>>> nose_coords = np.array([[100, 150], [102, 148], [105, 145]], dtype=np.float32)
>>> ear_coords = np.array([[90, 140], [92, 138], [95, 135]], dtype=np.float32)
>>> distances_mm = FeatureExtractionMixin.framewise_euclidean_distance(location_1=nose_coords, location_2=ear_coords, px_per_mm=4.5, centimeter=False)
>>> distances_cm = FeatureExtractionMixin.framewise_euclidean_distance(location_1=nose_coords, location_2=ear_coords, px_per_mm=4.5, centimeter=True)

static framewise_euclidean_distance_roi(location_1, location_2, px_per_mm, centimeter=False)[source]

Find frame-wise distances between a moving location (location_1) and static location (location_2) in millimeter or centimeter.

See also

For distances between two moving targets, use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance(), For GPU implementation, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy() or simba.data_processors.cuda.statistics.get_euclidean_distance_cuda() For numpy method (which appears faster than numba) use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.keypoint_distances().

Parameters

location_1 (ndarray) – 2D numpy array of size len(frames) x 2.
location_2 (ndarray) – 1D numpy array holding the X and Y of the static location.
px_per_mm (float) – The pixels per millimeter in the video.
centimeter (bool) – If true, the value in centimeters is returned. Else the value in millimeters.

Returns

1D array of size location_1.shape[0] with distances in millimeter or centimeter.

Return type

np.ndarray

Example

>>> loc_1 = np.random.randint(1, 200, size=(6, 2)).astype(np.float32)
>>> loc_2 = np.random.randint(1, 200, size=(1, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_euclidean_distance_roi(location_1=loc_1, location_2=loc_2, px_per_mm=4.56, centimeter=False)
>>> [11.31884926, 13.84534585,  6.09712224, 17.12773976, 19.32066031, 12.18043378]
>>> FeatureExtractionMixin.framewise_euclidean_distance_roi(location_1=loc_1, location_2=loc_2, px_per_mm=4.56, centimeter=True)
>>> [1.13188493, 1.38453458, 0.60971222, 1.71277398, 1.93206603, 1.21804338]

static framewise_inside_polygon_roi(bp_location, roi_coords)[source]

Jitted helper for frame-wise detection if animal is inside static polygon ROI.

Note

Modified from epifanio

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.is_inside_polygon()

Parameters

bp_location (np.ndarray) – 2d numeric np.ndarray size len(frames) x 2
roi_coords (np.ndarray) – 2d numeric np.ndarray size len(polygon points) x 2

Returns

2d numeric boolean np.ndarray size len(frames) x 1, with 0 representing outside the polygon and 1 representing inside the polygon.

Return type

np.ndarray

Example

>>> bp_loc = np.random.randint(1, 10, size=(6, 2)).astype(np.float32)
>>> roi_coords = np.random.randint(1, 10, size=(10, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_inside_polygon_roi(bp_location=bp_loc, roi_coords=roi_coords)
>>> [0, 0, 0, 1]

static framewise_inside_rectangle_roi(bp_location, roi_coords)[source]

Frame-wise analysis if animal is inside static rectangular ROI.

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.is_inside_rectangle().

Parameters

bp_location (np.ndarray) – 2d numeric np.ndarray size len(frames) x 2
roi_coords (np.ndarray) – 2d numeric np.ndarray size 2x2 (top left[x, y], bottom right[x, y])

Returns

2d numeric boolean np.ndarray size len(frames) x 1, with 0 representing outside the rectangle and 1 representing inside the rectangle.

Return type

ndarray

Example

>>> bp_loc = np.random.randint(1, 10, size=(6, 2)).astype(np.float32)
>>> roi_coords = np.random.randint(1, 10, size=(2, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_inside_rectangle_roi(bp_location=bp_loc, roi_coords=roi_coords)
>>> [0, 0, 0, 0, 0, 0]

get_bp_headers()[source]: Helper to create ordered list of all column header fields for SimBA project dataframes.

get_feature_extraction_headers(pose)[source]

Helper to return the headers names (body-part location columns) that should be used during feature extraction.

Parameters: pose (str) – Pose-estimation setting, e.g., 16.
Return List[str]: The names and order of the pose-estimation columns.

insert_default_headers_for_feature_extraction(df, headers, pose_config, filename)[source]: Helper to insert correct body-part column names prior to defualt feature extraction methods.

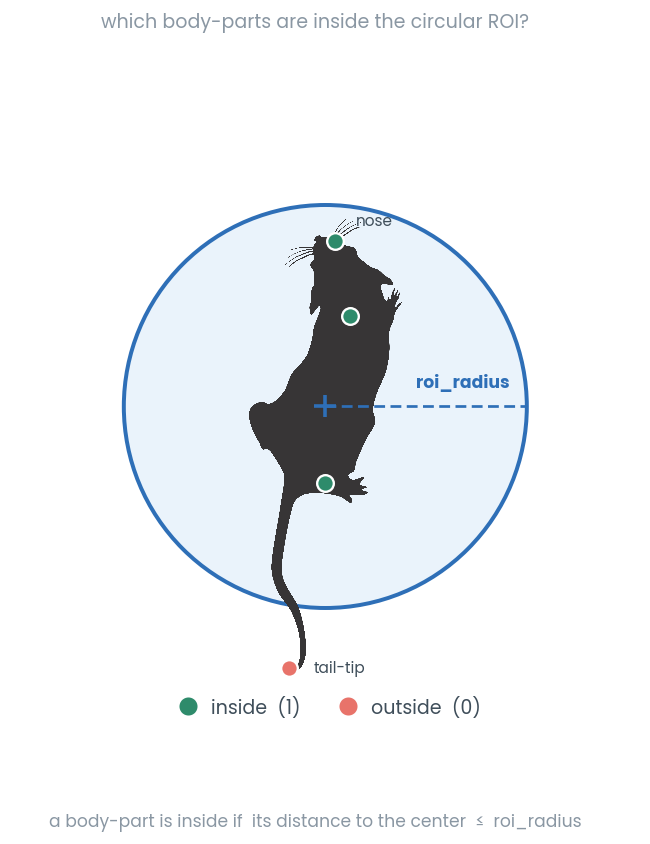

static is_inside_circle(bp, roi_center, roi_radius)[source]

Determines whether each body part in bp is inside or outside a given circular region.

This function calculates the Euclidean distance between each body part’s (x, y) coordinates and the center of the region of interest (ROI). If the distance is less than or equal to the specified radius, the body part is considered inside the circle (marked as 1); otherwise, it is considered outside (marked as 0).

See also

For GPU acceleration, see simba.data_processors.cuda.geometry.is_inside_circle()

Parameters

bp (np.ndarray) – A (N, 2) array containing the (x, y) coordinates of N body parts.
roi_center (np.ndarray) – A (2,) array representing the (x, y) coordinates of the circle center.
roi_radius (int) – The radius of the circular region of interest.

Returns

A 1D numpy array of size len(bp), where 1 represents a body part inside the circle and 0 represents a body part outside the circle.

Return type

np.ndarray

static jitted_line_crosses_to_nonstatic_targets(left_ear_array, right_ear_array, nose_array, target_array)[source]

Jitted helper to calculate if an animal is directing towards another animals body-part coordinate, given the target body-part and the left ear, right ear, and nose coordinates of the observer.

See also

Input left ear, right ear, and nose coordinates of the observer is returned by simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.check_directionality_viable()

If the target is static, consider simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.jitted_line_crosses_to_static_targets()

Parameters

left_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals left ear
right_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals right ear
nose_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals nose
target_array (np.ndarray) – 2D array of size len(frames) x 2 with the target body-part location

Returns

2D array of size len(frames) x 4. First column represent the side of the observer that the target is in view. 0 = Left side, 1 = Right side, 2 = Not in view.

Second and third column represent the x and y location of the observer animals eye (half-way between the ear and the nose). Fourth column represent if target is in view (bool). :rtype: np.ndarray

static jitted_line_crosses_to_static_targets(left_ear_array, right_ear_array, nose_array, target_array)[source]

Jitted helper to calculate if an animal is directing towards a static location (e.g., ROI centroid), given the target location and the left ear, right ear, and nose coordinates of the observer.

Note

Input left ear, right ear, and nose coordinates of the observer is returned by simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.check_directionality_viable()

If the target is moving, consider simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.jitted_line_crosses_to_nonstatic_targets().

See also

For GPU accelerated methods, see simba.data_processors.cuda.geometry.directionality_to_static_targets()

Parameters

left_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals left ear
right_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals right ear
nose_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals nose
target_array (np.ndarray) – 1D array of with x,y of target location

Returns

2D array of size len(frames) x 4. First column represent the side of the observer that the target is in view. 0 = Left side, 1 = Right side, 2 = Not in view.

Second and third column represent the x and y location of the observer animals eye (half-way between the ear and the nose). Fourth column represent if target is view (bool). :rtype: np.ndarray

static keypoint_distances(a, b, px_per_mm=1, in_centimeters=False)[source]

Compute Euclidean distances between corresponding 2D keypoints with unit conversion.

Given two arrays of 2D coordinates (x, y) sampled across frames, this function computes the frame-wise Euclidean distance between matching rows, converts from pixels to millimeters using px_per_mm, and optionally reports distances in centimeters. Input validity is checked and the output is guaranteed to be np.float32.

Appears faster than numba deocrated method, and slower than GPU methods.

EXPECTED RUNTIMES
FRAMES (MILLION)	NUMPY (S)	NUMPY (STDEV)	NUMBA (S)	NUMBA (STDEV)
1	0.02587	0.003	0.36039	0.00569
10	0.19996	0.00484	3.31322	0.01281
20	0.38827	0.000451	6.61436	0.028066
40	0.78	0.026	13.37	0.234
80	1.5313	0.024014	27.597	0.106101
160	3.2029	0.1515	55.829	0.1563
ITERATIONS:3
Intel(R) Core(TM) i9-14900KF

Parameters

a (np.ndarray) – Array of shape (n_frames, 2) with non-negative numeric [x, y] coordinates.
b (np.ndarray) – Array of shape (n_frames, 2) with non-negative numeric [x, y] coordinates. Must have the same number of rows as a.
px_per_mm (float) – Pixels-per-millimeter scaling factor (> 0). Distances are divided by this value.
in_centimeters (bool) – If True, returned distances are reported in centimeters (mm/10).

Returns

Frame-wise distances between corresponding rows in a and b (mm or cm).

Return type

np.ndarray

Example

>>> a = np.array([[0, 0], [3, 4], [6, 8]], dtype=np.float32)
>>> b = np.array([[0, 0], [0, 0], [3, 4]], dtype=np.float32)
>>> # px_per_mm = 1 -> distances reported in millimeters (same numeric scale as pixels)
>>> d_mm = FeatureExtractionMixin.keypoint_distances(a=a, b=b, px_per_mm=1.0, in_centimeters=False)
>>> d_cm = FeatureExtractionMixin.keypoint_distances(a=a, b=b, px_per_mm=1.0, in_centimeters=True)

static line_crosses_to_static_targets(p, q, n, M, coord)[source]

Legacy non-jitted helper to calculate if an animal is directing towards a static coordinate (e.g., ROI centroid).

Important

For improved runtime, use simba.mixins.feature_extraction_mixin.jitted_line_crosses_to_static_targets()

Parameters

p (list) – left ear coordinates of observing animal.
q (list) – right ear coordinates of observing animal.
n (list) – nose coordinates of observing animal.
M (list) – The location of the target coordinates.
coord (list) – empty list to store the eye coordinate of the observing animal.

Return bool

If True, static coordinate is in view.

Return List

If True, the coordinate of the observing animals eye (half-way between nose and ear).

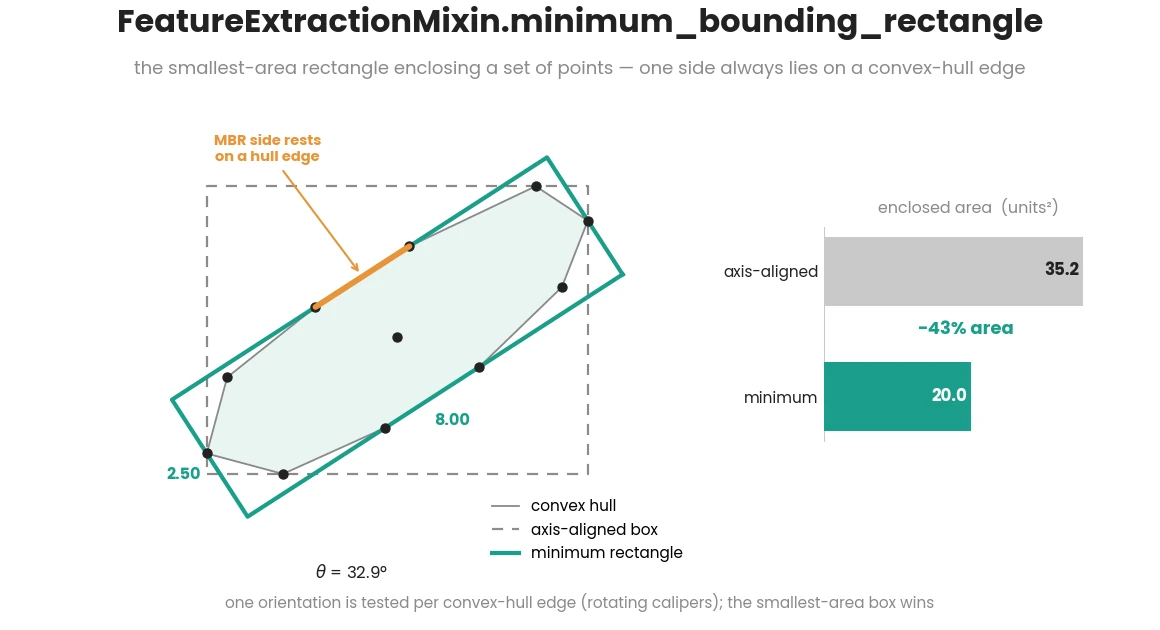

static minimum_bounding_rectangle(points)[source]

Finds the minimum bounding rectangle from convex hull vertices.

Note

Modified from JesseBuesking See simba.mixins.feature_extractors.perimeter_jit.jitted_hull() for computing the convexhull vertices.

See also

For multicore method and improved runtimes, see simba.mixins.geometry_mixin.GeometryMixin.multiframe_minimum_rotated_rectangle()

Parameters: points (np.ndarray) – 2D array representing the convexhull vertices of the animal.
Returns: 2D array representing minimum bounding rectangle of the convexhull vertices of the animal.
Return type: np.ndarray
Example

>>>   points = np.random.randint(1, 10, size=(10, 2))
>>>   FeatureExtractionMixin.minimum_bounding_rectangle(points=points)
>>> [[10.7260274 ,  3.39726027], [ 1.4109589 , -0.09589041], [-0.31506849,  4.50684932], [ 9., 8. ]]

static three_point_angle(bp_1, bp_2, bp_3)[source]

Compute frame-wise 3-point angles from three body-part trajectories.

Note

Wrapper method that validates input array/dataframe shape and dtypes before calling simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized().

See also

For scalar (single-frame) angle computation, use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt(). For the numba-accelerated vectorized implementation used internally, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized().

Parameters

bp_1 (Union[np.ndarray, pd.DataFrame]) – First body-part coordinates with shape (n_frames, 2).
bp_2 (Union[np.ndarray, pd.DataFrame]) – Second body-part coordinates with shape (n_frames, 2). Must have same frame count as bp_1.
bp_3 (Union[np.ndarray, pd.DataFrame]) – Third body-part coordinates with shape (n_frames, 2). Must have same frame count as bp_1.

Returns

1D array of frame-wise angles in degrees.

Return type

np.ndarray

Example

>>> bp_1 = np.array([[120, 200], [122, 198], [124, 197]], dtype=np.float32)
>>> bp_2 = np.array([[200, 180], [201, 179], [202, 178]], dtype=np.float32)
>>> bp_3 = np.array([[260, 140], [262, 139], [264, 138]], dtype=np.float32)
>>> FeatureExtractionMixin.three_point_angle(bp_1=bp_1, bp_2=bp_2, bp_3=bp_3)

static windowed_frequentist_distribution_tests(data, feature_name, fps)[source]

Calculates feature value distributions and feature peak counts in 1-s sequential time-bins.

Computes (i) feature value distributions in 1-s sequential time-bins: Kolmogorov-Smirnov and T-tests. Computes (ii) feature values against a normal distribution: Shapiro-Wilks. Computes (iii) peak count in rolling 1s long feature window: scipy.find_peaks.

Warning

This is a legacy method. For KS test, use simba.mixins.statistics_mixin.Statistics.two_sample_ks(). For t-tests, use simba.mixins.statistics_mixin.Statistics.independent_samples_t. For Shapiro-Wilks, use :func:`simba.mixins.statistics_mixin.Statistics.rolling_shapiro_wilks(). For peaks, use simba.mixins.feature_extraction_supplement_mixin.FeatureExtractionSupplemental.peak_ratio().

Parameters

data (np.ndarray) – Single feature 1D array
feature_name (np.ndarray) – The name of the input feature.
fps (int) – The framerate of the video representing the data.

Returns

Of size len(data) x 4 with columns representing KS, T, Shapiro-Wilks, and peak count statistics.

Return type

pd.DataFrame

Example

>>> feature_data = np.random.randint(1, 10, size=(100))
>>> FeatureExtractionMixin.windowed_frequentist_distribution_tests(data=feature_data, fps=25, feature_name='Anima_1_velocity')

Supplementary feature extraction methods

class simba.mixins.feature_extraction_supplement_mixin.FeatureExtractionSupplemental[source]

Additional feature extraction method not called by default feature extraction classes from simba.feature_extractors.

static angle3pt(ax, ay, bx, by, cx, cy)

Compute 3-point angle using thre body-parts.

See also

For multicore numba based method across multiple observations, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized(). For GPU acceleration, use simba.data_processors.cuda.statistics.get_3pt_angle().

Example

>>> FeatureExtractionMixin.angle3pt(ax=122.0, ay=198.0, bx=237.0, by=138.0, cx=191.0, cy=109)
>>> 59.78156901181637

static angle3pt_vectorized(data)

Numba accelerated compute of frame-wise 3-point angles.

See also

For GPU acceleration, use simba.data_processors.cuda.statistics.get_3pt_angle() for single frame alternative, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt()

Parameters: data (ndarray) – 2D numerical array with frame number on x and [ax, ay, bx, by, cx, cy] on y.
Returns: 1d float numerical array of size data.shape[0] with angles.
Return type: ndarray
Examples

>>> coordinates = np.random.randint(1, 10, size=(6, 6))
>>> FeatureExtractionMixin.angle3pt_vectorized(data=coordinates)
>>> [ 67.16634582,   1.84761027, 334.23067238, 258.69006753, 11.30993247, 288.43494882]

static bodypart_distance(bp1_coords, bp2_coords, px_per_mm=1.0, in_centimeters=False)

Calculate frame-wise Euclidean distances between two sets of body part coordinates.

The function uses the standard Euclidean distance formula: distance = √((x₁-x₂)² + (y₁-y₂)²) / px_per_mm

See also

Wrapper function (ensuring data validity) for the underlying implementation simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance(). For GPU CuPy solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy(). For GPU numba CUDA solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cuda(). For Euclidean distance between one moving and one static target, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance_roi().

Parameters

bp1_coords (np.ndarray) – First body part coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame.
bp2_coords (np.ndarray) – Second body part coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame. Must have the same number of frames as bp1_coords.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive. Default: 1.0.
in_centimeters (bool) – If True, returns distances in centimeters. If False, returns distances in millimeters. Default: False.

Returns

Array of Euclidean distances with shape (n_frames,) in the specified units as float32.

Return type

np.ndarray[np.float32]

Example

>>> bp1_coords = np.random.randint(0, 500, size=(1000, 2))
>>> bp2_coords = np.random.randint(0, 500, size=(1000, 2))
>>> FeatureExtractionMixin().bodypart_distance(bp1_coords=bp1_coords, bp2_coords=bp2_coords, px_per_mm=1.0, in_centimeters=False)

static border_distances(data, pixels_per_mm, img_resolution, time_window, fps)[source]

Compute the mean distance of key-point to the left, right, top, and bottom sides of the image in rolling time-windows. Uses a straight line.

Attention

Output for initial frames where [current_frm - window_size] < 0 will be populated with -1.

Parameters

data (np.ndarray) – 2d array of size len(frames)x2 with body-part coordinates.
img_resolution (np.ndarray) – Resolution of video in WxH format.
pixels_per_mm (float) – Pixels per millimeter of recorded video.
fps (int) – FPS of the recorded video
time_windows (float) – Rolling time-window as floats in seconds. E.g., 0.2

Return np.ndarray

Size data.shape[0] x 4 array with millimeter distances from LEFT, RIGH, TOP, BOTTOM,

Return type

np.ndarray

Example

>>> data = np.array([[250, 250], [250, 250], [250, 250], [500, 500],[500, 500], [500, 500]]).astype(float)
>>> img_resolution = np.array([500, 500])
>>> FeatureExtractionSupplemental().border_distances(data=data, img_resolution=img_resolution, time_window=1, fps=2, pixels_per_mm=1)
>>> [[-1, -1, -1, -1][250, 250, 250, 250][250, 250, 250, 250][375, 125, 375, 125][500, 0, 500, 0][500, 0, 500, 0]]

static cdist(array_1, array_2)

Analogue of meth:scipy.cdist for two 2D arrays. Use to calculate Euclidean distances between all coordinates in one array and all coordinates in a second array. E.g., computes the distances between all body-parts of one animal and all body-parts of a second animal. Acceleration though numba.

See also

For GPU acceleration, use cupyx.scipy.spatial.distance.cdist

Parameters

array_1 (np.ndarray) – 2D array of body-part coordinates
array_2 (np.ndarray) – 2D array of body-part coordinates

Returns

2D array of Euclidean distances between body-parts in array_1 and array_2

Return type

np.ndarray

Example

>>> array_1 = np.random.randint(1, 10, size=(3, 2)).astype(np.float32)
>>> array_2 = np.random.randint(1, 10, size=(3, 2)).astype(np.float32)
>>> FeatureExtractionMixin.cdist(array_1=array_1, array_2=array_2)
>>> [[7.07106781, 1.        , 3.60555124],
>>> [3.60555124, 6.3245554 , 2.        ],
>>>  [3.1622777 , 5.38516474, 4.12310553]])

static cdist_3d(data)

Jitted analogue of meth:scipy.cdist for 3D array. Use to calculate Euclidean distances between all coordinates in of one array and itself.

Parameters: data (np.ndarray) – 3D array of body-part coordinates of size len(frames) x -1 x 2.
Return np.ndarray: 3D array of size data.shape[0], data.shape[1], data.shape[1].

change_in_bodypart_euclidean_distance(location_1, location_2, fps, px_per_mm, time_windows=array([0.2, 0.4, 0.8, 1.6]))

Computes the difference between the distance of two body-parts in the current frame versus N.N seconds ago. Used for computing if animal body-parts are traveling away from each other (positive values) or towards each other (negative values) within defined time-windows.

Parameters

location_1 (np.ndarray) – 2D array (n_frames, 2) with the x,y positions of the first body-part.
location_2 (np.ndarray) – 2D array (n_frames, 2) with the x,y positions of the second body-part.
fps (int) – Frame-rate of the video.
px_per_mm (float) – Pixels per millimeter conversion factor.
time_windows (np.ndarray) – Reference time-windows (in seconds) to compare the current distance against.

Returns

Array of shape (n_frames, len(time_windows)); positive = parts moved apart, negative = moved closer.

Return type

np.ndarray

Example

>>> loc1 = np.random.randint(0, 500, (200, 2)).astype(np.float64)
>>> loc2 = np.random.randint(0, 500, (200, 2)).astype(np.float64)
>>> FeatureExtractionMixin().change_in_bodypart_euclidean_distance(location_1=loc1, location_2=loc2, fps=25, px_per_mm=2.0)

check_directionality_cords()

Helper to check if ear and nose body-parts are present within the pose-estimation data.

Return dict: Body-part names of ear and nose body-parts as values and animal names as keys. If empty, ear and nose body-parts are not present within the pose-estimation data

check_directionality_viable()

Check if it is possible to calculate directionality statistics.

Specifically, checks if nose and coordinates from pose estimation has to be present

Return bool: If True, directionality is viable. Else, not viable.
Return np.ndarray nose_coord: If viable, then 2D array with coordinates of the nose in all frames. Else, empty array.
Return np.ndarray ear_left_coord: If viable, then 2D array with coordinates of the left ear in all frames. Else, empty array.
Return np.ndarray ear_right_coord: If viable, then 2D array with coordinates of the right ear in all frames. Else, empty array.

static consecutive_time_series_categories_count(data, fps)[source]

Compute the count of consecutive milliseconds the feature value has remained static. For example, compute for how long in milleseconds the animal has remained in the current cardinal direction or the within an ROI.

Parameters

data (np.ndarray) – 1d array of feature values
fps (int) – Frame-rate of video.

Return np.ndarray

Array of size data.shape[0]

Return type

np.ndarray

Example

>>> data = np.array([0, 1, 1, 1, 4, 5, 6, 7, 8, 9])
>>> FeatureExtractionSupplemental().consecutive_time_series_categories_count(data=data, fps=10)
>>> [0.1, 0.1, 0.2, 0.3, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]
>>> data = np.array(['A', 'B', 'B', 'B', 'C', 'D', 'E', 'F', 'G', 'H'])
>>> [0.1, 0.1, 0.2, 0.3, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1]

static convex_hull_calculator_mp(arr, px_per_mm)

Calculate single frame convex hull perimeter length in millimeters.

Note

For acceptable run-time, call using parallel processing.

See also

For numba CPU based acceleration, use simba.feature_extractors.perimeter_jit.jitted_hull(). For multicore based acceleration, use simba.mixins.geometry_mixin.GeometryMixin.bodyparts_to_polygon(). For numba CUDA based acceleration, use simba.data_processors.cuda.geometry.get_convex_hull(),

Parameters

arr (np.ndarray) – 2D array of size len(body-parts) x 2.
px_per_mm (float) – Video pixels per millimeter.

Returns

The length of the animal perimeter in millimeters.

Return type

float

Example

>>> coordinates = np.random.randint(1, 200, size=(6, 2)).astype(np.float32)
>>> FeatureExtractionMixin.convex_hull_calculator_mp(arr=coordinates, px_per_mm=4.56)
>>> 98.6676814218373

static cosine_similarity(data)

Jitted analogue of sklearn.metrics.pairwise import cosine_similarity. Similar to scipy.cdist. calculates the cosine similarity between all pairs in 2D array.

Parameters: data (np.ndarray) – 2D array of observations.
Returns: Matrix representing the cosine similarity between all observations in data.
Return type: np.ndarray
Example

>>> data = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]]).astype(np.float32)
>>> FeatureExtractionMixin().cosine_similarity(data=data)
>>> [[1.0, 0.974, 0.959][0.974,  1.0, 0.998] [0.959, 0.998, 1.0]

static count_values_in_range(data, ranges)

Jitted helper finding count of values that falls within ranges. E.g., count number of pose-estimated body-parts that fall within defined bracket of probabilities per frame.

Parameters

data (np.ndarray) – 2D numpy array with frames on X.
ranges (np.ndarray) – 2D numpy array representing the brackets. E.g., [[0, 0.1], [0.1, 0.5]]

Returns

2D numpy array of size data.shape[0], ranges.shape[1]

Return type

np.ndarray

Example

>>> FeatureExtractionMixin.count_values_in_range(data=np.random.random((3,10)), ranges=np.array([[0.0, 0.25], [0.25, 0.5]]))
>>> [[6, 1], [3, 2],[2, 1]]

static create_shifted_array(data, periods=1)

Create a shifted NumPy array with edge values filled from original data.

This method mirrors create_shifted_df() shift behavior, but for NumPy arrays. It returns only shifted values (not concatenated with original input values).

See also

For pandas DataFrame input with concatenated original and shifted columns, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.create_shifted_df().

Parameters

data (np.ndarray) – Numeric 1D or 2D array with frames on axis 0.
periods (int) – Number of rows to shift. Positive shifts down, negative shifts up.

Returns

Shifted array with the same shape as input (1D input is returned as 2D (n, 1)).

Return type

np.ndarray

Example

>>> arr = np.array([[10], [95], [85]])
>>> FeatureExtractionMixin.create_shifted_array(data=arr, periods=1)
>>> array([[10.], [10.], [95.]])

static create_shifted_df(df, periods=1, suffix='_shifted')

Create dataframe including duplicated shifted (1) columns with _shifted suffix.

See also

For NumPy input and shifted-values-only output, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.create_shifted_array().

Parameters

df (pd.DataFrame) – Dataframe to create additional shifted fields from.
int (periods) – The rows to shift the new fields. 1 denotes that the shifted fields get shifted one row “down”. -1 and the fields would be shifted one row “up”.
suffix (str) – The suffix to add to the new, shifted, fields. Default: “shifted”.

Return pd.DataFrame

Dataframe including original and shifted columns.

Example

>>> df = pd.DataFrame(np.random.randint(0,100,size=(3, 1)), columns=['Feature_1'])
>>> FeatureExtractionMixin.create_shifted_df(df=df)
>>>             Feature_1  Feature_1_shifted
>>>    0         76               76.0
>>>    1         41               76.0
>>>    2         89               41.0

dataframe_gaussian_smoother(df, fps, time_window=100)

Column-wise Gaussian smoothing of dataframe.

Parameters

df (pd.DataFrame) – Dataframe with un-smoothened data.
fps (int) – The frame-rate of the video representing the data.
time_window (int) – Time-window in milliseconds to use for Gaussian smoothing.

Return pd.DataFrame

Dataframe with smoothened data

References

1: Video expected putput.

dataframe_savgol_smoother(df, fps, time_window=150)

Column-wise Savitzky-Golay smoothing of dataframe.

Parameters

df (pd.DataFrame) – Dataframe with un-smoothened data.
fps (int) – The frame-rate of the video representing the data.
time_window (int) – Time-window in milliseconds to use for Gaussian smoothing.

Return pd.DataFrame

Dataframe with smoothened data

References

1: Video expected putput.

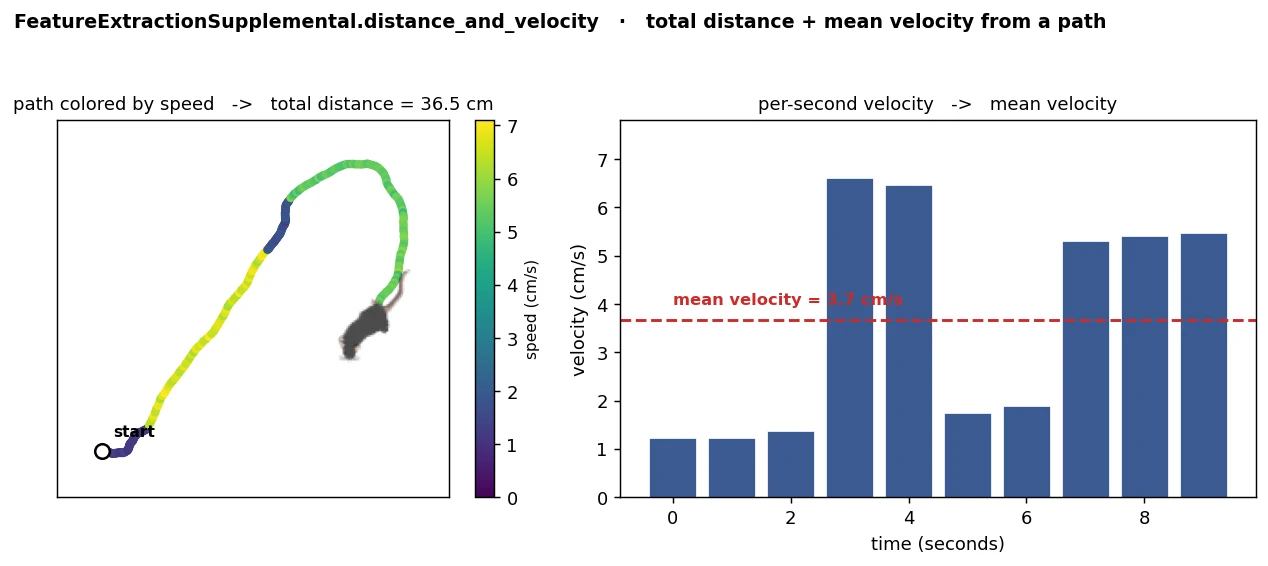

static distance_and_velocity(x, fps, pixels_per_mm, centimeters=True)[source]

Calculate total movement and mean velocity from a sequence of position data.

Parameters

x – Array containing movement data. For example, created by simba.mixins.FeatureExtractionMixin.framewise_euclidean_distance. If its a 2-dimensional array, then we assume its pixel coordinates. If it’s a 1d array, we assume its frame-wise euclidean distances.
fps – Frames per second of the data.
pixels_per_mm – Conversion factor from pixels to millimeters.
centimeters (Optional[bool]) – If True, results are returned in centimeters and centimeters per second. Defaults to True. If false, then milimeters and millimeters per second.

Returns

A tuple containing total movement and mean velocity.

Return type

Tuple[float, float]

Example

>>> x = np.random.randint(0, 100, (100,))
>>> sum_movement, avg_velocity = FeatureExtractionSupplemental.distance_and_velocity(x=x, fps=10, pixels_per_mm=10, centimeters=True)

>>> x = np.random.randint(0, 100, (100, 2))
>>> sum_movement, avg_velocity = FeatureExtractionSupplemental.distance_and_velocity(x=x, fps=10, pixels_per_mm=10, centimeters=True)

static euclidean_distance(bp_1_x, bp_2_x, bp_1_y, bp_2_y, px_per_mm)

Compute Euclidean distance in millimeters between two body-parts.

Parameters

bp_1_x (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 1 x-coordinates.
bp_2_x (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 2 x-coordinates.
bp_1_y (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 1 y-coordinates.
bp_2_y (np.ndarray) – 2D array of size len(frames) x 1 with bodypart 2 y-coordinates.

Returns

2D array of size len(frames) x 1 with distances between body-part 1 and body-part 2 in millimeters

Return type

np.ndarray

Example

>>> x1, x2 = np.random.randint(1, 10, size=(10, 1)), np.random.randint(1, 10, size=(10, 1))
>>> y1, y2 = np.random.randint(1, 10, size=(10, 1)), np.random.randint(1, 10, size=(10, 1))
>>> FeatureExtractionMixin.euclidean_distance(bp_1_x=x1, bp_2_x=x2, bp_1_y=y1, bp_2_y=y2, px_per_mm=4.56)

euclidean_distance_timeseries_change(location_1, location_2, fps, px_per_mm, time_windows=array([0.2, 0.4, 0.8, 1.6]))[source]

Compute the difference in distance between two points in the current frame versus N.N seconds ago. E.g., computes if two points are traveling away from each other (positive output values) or towards each other (negative output values) relative to reference time-point(s)

Parameters

location_1 (ndarray) – 2D array of size len(frames) x 2 representing pose-estimated locations of body-part one
location_2 (ndarray) – 2D array of size len(frames) x 2 representing pose-estimated locations of body-part two
fps (int) – Fps of the recorded video.
px_per_mm (float) – The pixels per millimeter in the video.
time_windows (np.ndarray) – Time windows to compare.

Returns

Array of size location_1.shape[0] x time_windows.shape[0]

Return type

np.array

Example

>>> location_1 = np.random.randint(low=0, high=100, size=(2000, 2)).astype('float32')
>>> location_2 = np.random.randint(low=0, high=100, size=(2000, 2)).astype('float32')
>>> distances = self.euclidean_distance_timeseries_change(location_1=location_1, location_2=location_2, fps=10, px_per_mm=4.33, time_windows=np.array([0.2, 0.4, 0.8, 1.6]))

static find_midpoints(bp_1, bp_2, percentile)

Compute the midpoints between two sets of 2D points based on a given percentile.

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.find_midpoints()

Parameters

bp_1 (np.ndarray) – An array of 2D points representing the first set of points. Rows represent frames. First column represent x coordinates. Second column represent y coordinates.
bp_2 (np.ndarray) – An array of 2D points representing the second set of points. Rows represent frames. First column represent x coordinates. Second column represent y coordinates.
percentile (float) – The percentile value to determine the distance between the points for calculating midpoints. When set to 0.5 it calculates midpoints at the midpoint of the two points.

Returns

An array of 2D points representing the midpoints between the points in bp_1 and bp_2 based on the specified percentile.

Return type

np.ndarray

Example

>>> bp_1 = np.array([[1, 3], [30, 10]]).astype(np.int64)
>>> bp_2 = np.array([[10, 4], [20, 1]]).astype(np.int64)
>>> FeatureExtractionMixin().find_midpoints(bp_1=bp_1, bp_2=bp_2, percentile=0.5)
>>> [[ 5,  3], [25,  6]]

static find_path_loops(data)[source]

Compute the loops detected within a 2-dimensional path.

Parameters: data (np.ndarray) – Nx2 2-dimensional array with the x and y coordinated represented on axis 1.
Returns: Dictionary with the coordinate tuple(x, y) as keys, and sequential frame numbers as values when animals visited, and re-visited the key coordinate.
Return type: Dict[Tuple[int], List[int]]
Example

>>> data = read_df(file_path='/Users/simon/Desktop/envs/simba/troubleshooting/mouse_open_field/project_folder/csv/outlier_corrected_movement_location/SI_DAY3_308_CD1_PRESENT.csv', usecols=['Center_x', 'Center_y'], file_type='csv').values.astype(int)
>>> FeatureExtractionSupplemental.find_path_loops(data=data)

static framewise_bodypart_movement(data, px_per_mm=1, centimeter=False)

Compute frame-wise movement for a single body-part trajectory.

See also

For movement between two distinct body-parts, use func:simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.bodypart_distance. For direct per-frame distance computation between two coordinate arrays, use func:simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance.

Parameters

data (Union[np.ndarray, pd.DataFrame]) – Body-part coordinates with shape (n_frames, 2) where columns represent x and y pixel positions. Accepted as numpy array or pandas DataFrame.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive. Default: 1.
centimeter (bool) – If True, return movement in centimeters. If False, return movement in millimeters. Default: False.

Returns

1D array of frame-wise displacement values with shape (n_frames,).

Return type

np.ndarray

Example

>>> coords = np.array([[10, 10], [13, 14], [13, 20]], dtype=np.float32)
>>> FeatureExtractionMixin.framewise_bodypart_movement(data=coords, px_per_mm=2.0, centimeter=False)

static framewise_euclidean_distance(location_1, location_2, px_per_mm, centimeter)

Compute frame-wise Euclidean distances between two sets of moving 2D locations.

This numba-jitted function efficiently calculates the straight-line distance between corresponding points in two location arrays for each frame. The distances are converted from pixels to real-world units (millimeters or centimeters) using the provided pixel-to-millimeter conversion factor.

Uses the standard Euclidean distance formula: √((x₁-x₂)² + (y₁-y₂)²) / px_per_mm

Note

This function is optimized with numba JIT parallel execution compilation for high performance on large datasets.

See also

For GPU CuPy solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy(). For GPU numba CUDA solution, see simba.data_processors.cuda.statistics.get_euclidean_distance_cuda(). For Euclidean distance between one moving and one static target, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance_roi(). For wrapper function ensuring dtypes and data validity in this method, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.bodypart_distance().

Parameters

location_1 (np.ndarray) – First set of 2D coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame.
location_2 (np.ndarray) – Second set of 2D coordinates with shape (n_frames, 2), where each row contains [x, y] pixel coordinates for a specific frame. Must have same shape as location_1.
px_per_mm (float) – Conversion factor from pixels to millimeters. Must be positive.
centimeter (bool) – If True, returns distances in centimeters. If False, returns distances in millimeters. Default is False.

Returns

Array of Euclidean distances with shape (n_frames,).

Return type

np.ndarray

Example

>>> # Calculate distances between two body parts across frames
>>> nose_coords = np.array([[100, 150], [102, 148], [105, 145]], dtype=np.float32)
>>> ear_coords = np.array([[90, 140], [92, 138], [95, 135]], dtype=np.float32)
>>> distances_mm = FeatureExtractionMixin.framewise_euclidean_distance(location_1=nose_coords, location_2=ear_coords, px_per_mm=4.5, centimeter=False)
>>> distances_cm = FeatureExtractionMixin.framewise_euclidean_distance(location_1=nose_coords, location_2=ear_coords, px_per_mm=4.5, centimeter=True)

static framewise_euclidean_distance_roi(location_1, location_2, px_per_mm, centimeter=False)

Find frame-wise distances between a moving location (location_1) and static location (location_2) in millimeter or centimeter.

See also

For distances between two moving targets, use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.framewise_euclidean_distance(), For GPU implementation, see simba.data_processors.cuda.statistics.get_euclidean_distance_cupy() or simba.data_processors.cuda.statistics.get_euclidean_distance_cuda() For numpy method (which appears faster than numba) use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.keypoint_distances().

Parameters

location_1 (ndarray) – 2D numpy array of size len(frames) x 2.
location_2 (ndarray) – 1D numpy array holding the X and Y of the static location.
px_per_mm (float) – The pixels per millimeter in the video.
centimeter (bool) – If true, the value in centimeters is returned. Else the value in millimeters.

Returns

1D array of size location_1.shape[0] with distances in millimeter or centimeter.

Return type

np.ndarray

Example

>>> loc_1 = np.random.randint(1, 200, size=(6, 2)).astype(np.float32)
>>> loc_2 = np.random.randint(1, 200, size=(1, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_euclidean_distance_roi(location_1=loc_1, location_2=loc_2, px_per_mm=4.56, centimeter=False)
>>> [11.31884926, 13.84534585,  6.09712224, 17.12773976, 19.32066031, 12.18043378]
>>> FeatureExtractionMixin.framewise_euclidean_distance_roi(location_1=loc_1, location_2=loc_2, px_per_mm=4.56, centimeter=True)
>>> [1.13188493, 1.38453458, 0.60971222, 1.71277398, 1.93206603, 1.21804338]

static framewise_inside_polygon_roi(bp_location, roi_coords)

Jitted helper for frame-wise detection if animal is inside static polygon ROI.

Note

Modified from epifanio

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.is_inside_polygon()

Parameters

bp_location (np.ndarray) – 2d numeric np.ndarray size len(frames) x 2
roi_coords (np.ndarray) – 2d numeric np.ndarray size len(polygon points) x 2

Returns

2d numeric boolean np.ndarray size len(frames) x 1, with 0 representing outside the polygon and 1 representing inside the polygon.

Return type

np.ndarray

Example

>>> bp_loc = np.random.randint(1, 10, size=(6, 2)).astype(np.float32)
>>> roi_coords = np.random.randint(1, 10, size=(10, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_inside_polygon_roi(bp_location=bp_loc, roi_coords=roi_coords)
>>> [0, 0, 0, 1]

static framewise_inside_rectangle_roi(bp_location, roi_coords)

Frame-wise analysis if animal is inside static rectangular ROI.

See also

For GPU acceleration, use simba.data_processors.cuda.geometry.is_inside_rectangle().

Parameters

bp_location (np.ndarray) – 2d numeric np.ndarray size len(frames) x 2
roi_coords (np.ndarray) – 2d numeric np.ndarray size 2x2 (top left[x, y], bottom right[x, y])

Returns

2d numeric boolean np.ndarray size len(frames) x 1, with 0 representing outside the rectangle and 1 representing inside the rectangle.

Return type

ndarray

Example

>>> bp_loc = np.random.randint(1, 10, size=(6, 2)).astype(np.float32)
>>> roi_coords = np.random.randint(1, 10, size=(2, 2)).astype(np.float32)
>>> FeatureExtractionMixin.framewise_inside_rectangle_roi(bp_location=bp_loc, roi_coords=roi_coords)
>>> [0, 0, 0, 0, 0, 0]

get_bp_headers(): Helper to create ordered list of all column header fields for SimBA project dataframes.

get_feature_extraction_headers(pose)

Helper to return the headers names (body-part location columns) that should be used during feature extraction.

Parameters: pose (str) – Pose-estimation setting, e.g., 16.
Return List[str]: The names and order of the pose-estimation columns.

static img_edge_distances(data, pixels_per_mm, img_resolution, time_window, fps)[source]

Calculate the distances from a set of points to the edges of an image over a specified time window.

This function computes the average distances from given coordinates to the four edges (top, right, bottom, left) of an image. The distances are calculated for points within a specified time window, and the results are adjusted based on the pixel-to-mm conversion.

Parameters

data (np.ndarray) – 3d array of size len(frames) x N x 2 with body-part coordinates.
img_resolution (np.ndarray) – Resolution of video in WxH format.
pixels_per_mm (float) – Pixels per millimeter of recorded video.
fps (int) – FPS of the recorded video
time_windows (float) – Rolling time-window as floats in seconds. E.g., 0.2

Return np.ndarray

Size data.shape[0] x 4 array with millimeter distances from TOP LEFT, TOP RIGH, BOTTOM RIGHT, BOTTOM LEFT.

Return type

np.ndarray

Example I

>>> data = np.array([[0, 0], [758, 540], [0, 540], [748, 540]])
>>> img_edge_distances(data=data, pixels_per_mm=2.13, img_resolution=np.array([748, 540]), time_window=1.0, fps=1)

Example II

>>> data = read_df(file_path=FILE_PATH, file_type='csv', usecols=['Nose_x', 'Nose_y', 'Tail_base_x', 'Tail_base_y'])
>>> data = data.values.reshape(len(data), 2, 2)
>>> FeatureExtractionSupplemental.img_edge_distances(data=data, pixels_per_mm=2.13, img_resolution=np.array([748, 540]), time_window=1.0, fps=1)

insert_default_headers_for_feature_extraction(df, headers, pose_config, filename): Helper to insert correct body-part column names prior to defualt feature extraction methods.

static is_inside_circle(bp, roi_center, roi_radius)

Determines whether each body part in bp is inside or outside a given circular region.

This function calculates the Euclidean distance between each body part’s (x, y) coordinates and the center of the region of interest (ROI). If the distance is less than or equal to the specified radius, the body part is considered inside the circle (marked as 1); otherwise, it is considered outside (marked as 0).

See also

For GPU acceleration, see simba.data_processors.cuda.geometry.is_inside_circle()

Parameters

bp (np.ndarray) – A (N, 2) array containing the (x, y) coordinates of N body parts.
roi_center (np.ndarray) – A (2,) array representing the (x, y) coordinates of the circle center.
roi_radius (int) – The radius of the circular region of interest.

Returns

A 1D numpy array of size len(bp), where 1 represents a body part inside the circle and 0 represents a body part outside the circle.

Return type

np.ndarray

static jitted_line_crosses_to_nonstatic_targets(left_ear_array, right_ear_array, nose_array, target_array)

Jitted helper to calculate if an animal is directing towards another animals body-part coordinate, given the target body-part and the left ear, right ear, and nose coordinates of the observer.

See also

Input left ear, right ear, and nose coordinates of the observer is returned by simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.check_directionality_viable()

If the target is static, consider simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.jitted_line_crosses_to_static_targets()

Parameters

left_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals left ear
right_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals right ear
nose_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals nose
target_array (np.ndarray) – 2D array of size len(frames) x 2 with the target body-part location

Returns

2D array of size len(frames) x 4. First column represent the side of the observer that the target is in view. 0 = Left side, 1 = Right side, 2 = Not in view.

Second and third column represent the x and y location of the observer animals eye (half-way between the ear and the nose). Fourth column represent if target is in view (bool). :rtype: np.ndarray

static jitted_line_crosses_to_static_targets(left_ear_array, right_ear_array, nose_array, target_array)

Jitted helper to calculate if an animal is directing towards a static location (e.g., ROI centroid), given the target location and the left ear, right ear, and nose coordinates of the observer.

Note

Input left ear, right ear, and nose coordinates of the observer is returned by simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.check_directionality_viable()

If the target is moving, consider simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.jitted_line_crosses_to_nonstatic_targets().

See also

For GPU accelerated methods, see simba.data_processors.cuda.geometry.directionality_to_static_targets()

Parameters

left_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals left ear
right_ear_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals right ear
nose_array (np.ndarray) – 2D array of size len(frames) x 2 with the coordinates of the observer animals nose
target_array (np.ndarray) – 1D array of with x,y of target location

Returns

2D array of size len(frames) x 4. First column represent the side of the observer that the target is in view. 0 = Left side, 1 = Right side, 2 = Not in view.

Second and third column represent the x and y location of the observer animals eye (half-way between the ear and the nose). Fourth column represent if target is view (bool). :rtype: np.ndarray

static keypoint_distances(a, b, px_per_mm=1, in_centimeters=False)

Compute Euclidean distances between corresponding 2D keypoints with unit conversion.

Given two arrays of 2D coordinates (x, y) sampled across frames, this function computes the frame-wise Euclidean distance between matching rows, converts from pixels to millimeters using px_per_mm, and optionally reports distances in centimeters. Input validity is checked and the output is guaranteed to be np.float32.

Appears faster than numba deocrated method, and slower than GPU methods.

EXPECTED RUNTIMES
FRAMES (MILLION)	NUMPY (S)	NUMPY (STDEV)	NUMBA (S)	NUMBA (STDEV)
1	0.02587	0.003	0.36039	0.00569
10	0.19996	0.00484	3.31322	0.01281
20	0.38827	0.000451	6.61436	0.028066
40	0.78	0.026	13.37	0.234
80	1.5313	0.024014	27.597	0.106101
160	3.2029	0.1515	55.829	0.1563
ITERATIONS:3
Intel(R) Core(TM) i9-14900KF

Parameters

a (np.ndarray) – Array of shape (n_frames, 2) with non-negative numeric [x, y] coordinates.
b (np.ndarray) – Array of shape (n_frames, 2) with non-negative numeric [x, y] coordinates. Must have the same number of rows as a.
px_per_mm (float) – Pixels-per-millimeter scaling factor (> 0). Distances are divided by this value.
in_centimeters (bool) – If True, returned distances are reported in centimeters (mm/10).

Returns

Frame-wise distances between corresponding rows in a and b (mm or cm).

Return type

np.ndarray

Example

>>> a = np.array([[0, 0], [3, 4], [6, 8]], dtype=np.float32)
>>> b = np.array([[0, 0], [0, 0], [3, 4]], dtype=np.float32)
>>> # px_per_mm = 1 -> distances reported in millimeters (same numeric scale as pixels)
>>> d_mm = FeatureExtractionMixin.keypoint_distances(a=a, b=b, px_per_mm=1.0, in_centimeters=False)
>>> d_cm = FeatureExtractionMixin.keypoint_distances(a=a, b=b, px_per_mm=1.0, in_centimeters=True)

static line_crosses_to_static_targets(p, q, n, M, coord)

Legacy non-jitted helper to calculate if an animal is directing towards a static coordinate (e.g., ROI centroid).

Important

For improved runtime, use simba.mixins.feature_extraction_mixin.jitted_line_crosses_to_static_targets()

Parameters

p (list) – left ear coordinates of observing animal.
q (list) – right ear coordinates of observing animal.
n (list) – nose coordinates of observing animal.
M (list) – The location of the target coordinates.
coord (list) – empty list to store the eye coordinate of the observing animal.

Return bool

If True, static coordinate is in view.

Return List

If True, the coordinate of the observing animals eye (half-way between nose and ear).

static minimum_bounding_rectangle(points)

Finds the minimum bounding rectangle from convex hull vertices.

Note

Modified from JesseBuesking See simba.mixins.feature_extractors.perimeter_jit.jitted_hull() for computing the convexhull vertices.

See also

For multicore method and improved runtimes, see simba.mixins.geometry_mixin.GeometryMixin.multiframe_minimum_rotated_rectangle()

Parameters: points (np.ndarray) – 2D array representing the convexhull vertices of the animal.
Returns: 2D array representing minimum bounding rectangle of the convexhull vertices of the animal.
Return type: np.ndarray
Example

>>>   points = np.random.randint(1, 10, size=(10, 2))
>>>   FeatureExtractionMixin.minimum_bounding_rectangle(points=points)
>>> [[10.7260274 ,  3.39726027], [ 1.4109589 , -0.09589041], [-0.31506849,  4.50684932], [ 9., 8. ]]

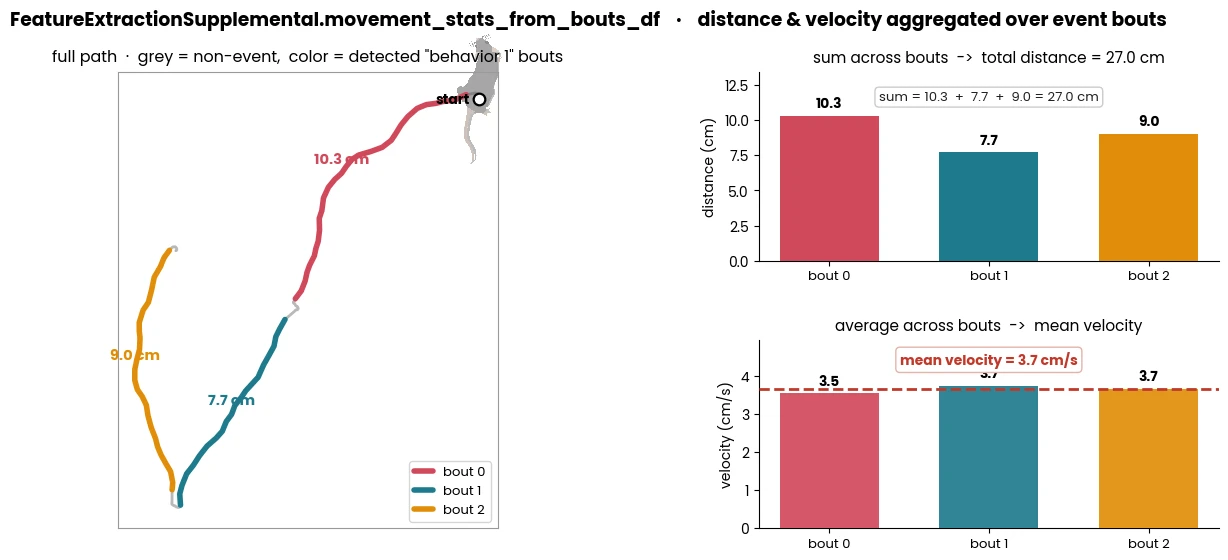

static movement_stats_from_bouts_df(bp_data, event_name, bout_df, fps, px_per_mm)[source]

Compute the sum distance moved and the mean velocity during a defined event.

See also

To compute bout_df, use simba.utils.data.detect_bouts()

Parameters

bp_data (np.ndarray) – 2D array with position data.
event_name (str) – Name of the event to compute velocity and movement from. E.g., can be a classified behavior or an ROI name.
bout_df (pd.DataFrame) – Dataframe with detected events. Returned by simba.utils.data.detect_bouts().
fps (float) – The sample rate of the video.
px_per_mm (float) – The pixel per millimeter conversion factor of the video.

Returns

Tuple of two floats representing movement and velocity. If no events of event_name is detected, then 0 and ``None.

Return type

Tuple[float, float]

static peak_ratio(data, bin_size_s, fps)[source]

Compute the ratio of peak values relative to number of values within each seqential time-period represented of bin_size_s seconds. Peak is defined as value is higher than in the prior observation (i.e., no future data is involved in comparison).

Parameters

data (ndarray) – 1D array of size len(frames) representing feature values.
bin_size_s (int) – The size of the buckets in seconds.
fps (int) – Frame-rate of recorded video.

Returns

Array of size data.shape[0] with peak counts as ratio of len(frames).

Return type

np.ndarray

Example

>>> data = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])
>>> FeatureExtractionSupplemental().peak_ratio(data=data, bin_size_s=1, fps=10)
>>> [0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9]
>>> data = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0])
>>> FeatureExtractionSupplemental().peak_ratio(data=data, bin_size_s=1, fps=10)
>>> [0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.  0.  0.  0.  0.  0.  0.  0. 0.  0. ]

static rolling_categorical_switches_ratio(data, time_windows, fps)[source]

Compute the ratio of in categorical feature switches within rolling windows.

Attention

Output for initial frames where [current_frm - window_size] < 0, are populated with 0.

Parameters

data (np.ndarray) – 1d array of feature values
time_windows (np.ndarray) – Rolling time-windows as floats in seconds. E.g., [0.2, 0.4, 0.6]
fps (int) – fps of the recorded video

Returns

Size data.shape[0] x time_windows.shape[0] array

Return type

np.ndarray

Example

>>> data = np.array([0, 1, 1, 1, 4, 5, 6, 7, 8, 9])
>>> FeatureExtractionSupplemental().rolling_categorical_switches_ratio(data=data, time_windows=np.array([1.0]), fps=10)
>>> [[-1][-1][-1][-1][-1][-1][-1][-1][-1][ 0.7]]
>>> data = np.array(['A', 'B', 'B', 'B', 'C', 'D', 'E', 'F', 'G', 'H'])
>>> FeatureExtractionSupplemental().rolling_categorical_switches_ratio(data=data, time_windows=np.array([1.0]), fps=10)
>>> [[-1][-1][-1][-1][-1][-1][-1][-1][-1][ 0.7]]

static rolling_horizontal_vs_vertical_movement(data, pixels_per_mm, time_windows, fps)[source]

Compute the movement along the x-axis relative to the y-axis in rolling time bins.

Attention

Output for initial frames where [current_frm - window_size] < 0, are populated with 0.

Parameters

data (np.ndarray) – 2d array of size len(frames)x2 with body-part coordinates.
fps (int) – FPS of the recorded video
pixels_per_mm (float) – Pixels per millimeter of recorded video.
time_windows (np.ndarray) – Rolling time-windows as floats in seconds. E.g., [0.2, 0.4, 0.6]

Returns

Size data.shape[0] x time_windows.shape[0]. Greater values denote greater movement on x-axis relative to y-axis.

Return type

np.ndarray

Example

>>> data = np.array([[250, 250], [250, 250], [250, 250], [250, 500], [500, 500], 500, 500]]).astype(float)
>>> FeatureExtractionSupplemental().rolling_horizontal_vs_vertical_movement(data=data, time_windows=np.array([1.0]), fps=2, pixels_per_mm=1)
>>> [[  -1.][   0.][   0.][-250.][ 250.][   0.]]

static rolling_peak_count_ratio(data, time_windows, fps)[source]

Computes the ratio of peak counts within rolling windows over time for a given dataset.

The function calculates the ratio of local peaks (points that are greater than their neighbors) in a sliding time window of varying durations defined by time_windows. Peaks at the beginning and end of each window are also included in the count if they satisfy the peak condition. This is performed across multiple windows and for each timestep in the input data.

Parameters

data (np.ndarray) – A 1D array of numerical data for which the rolling peak count ratio is calculated.
time_windows (np.ndarray) – A 1D array of time durations (in seconds) defining the size of each sliding window.
fps (int) – Frames per second conversion factor.

Returns

A 2D array where each row corresponds to a timestep in data, and each column corresponds to a time window. Each element represents the peak count ratio for that timestep and time window.

Return type

np.ndarray

static sequential_lag_analysis(data, criterion, target, time_window, fps)[source]

Perform sequential lag analysis to determine the temporal relationship between two events.

For every onset of behavior C, count the proportions of behavior T onsets in the time-window preceding the onset of behavior C vs the proportion of behavior T onsets in the time-window proceeding the onset of behavior C.

See also

For altenative method, see FSTTCCalculator()

Parameters

data (pd.DataFrame) – Dataframe with boolean values representing frame-wise precense of behaviors.
criterion (str) – Name of the field in data representing behavior C.
target (str) – Name of the field in data representing behavior T.
time_window (float) – The time-window to scan proceeding and preceding behavior T.
fps (float) – The sample rate of the video used as conversion factor.

Returns

A value between -1 and 1 representing the relationship. A value closer to 1.0 indicates that behavior T always precede behavior C. A value closer to 0.0 indicates that behavior T follows behavior C. A value of -1.0 indicates that behavior T never precede nor proceed behavior C.

Return type

float.

Example

>>> df = pd.DataFrame(np.random.randint(0, 2, (100, 2)), columns=['Attack', 'Sniffing'])
>>> FeatureExtractionSupplemental.sequential_lag_analysis(data=df, criterion='Attack', target='Sniffing', fps=5, time_window=2.0)

References

1: Casarrubea, M., Leca, J.-B., Gunst, N., Jonsson, G. K., Portell, M., Di Giovanni, G., Aiello, S., & Crescimanno, G. (2022). Structural analyses in the study of behavior: From rodents to non-human primates. Frontiers in Psychology, 13. https://doi.org/10.3389/fpsyg.2022.1033561
2: Lloyd, B. P., Yoder, P. J., Tapp, J., & Staubitz, J. L. (2016). The relative accuracy and interpretability of five sequential analysis methods: A simulation study. Behavior Research Methods, 48(4), 1482–1491. https://doi.org/10.3758/s13428-015-0661-5

static spontaneous_alternations(data, arm_names, center_name)[source]

Detects spontaneous alternations between a set of user-defined ROIs.

Parameters

data (pd.DataFrame) – DataFrame containing shape data where each row represents a frame and each column represents a shape where 0 represents not in ROI and 1 represents inside the ROI
shape_names (List[str]) – List of column names in the DataFrame corresponding to shape names.

Return Dict[Union[str, Tuple[str], Union[int, float, List[int]]]]

Dict with the following keys and values:

‘pct_alternation’: Percent alternation computed as (spontaneous alternation cnt / (total number of arm entries - (number of arms - 1))) × 100
‘alternation_cnt’: The sliding count of ROI entry sequences of length len(shape_names) that are all unique.
‘same_arm_returns_cnt’: Aggregate count of sequential visits to the same ROI.
‘alternate_arm_returns_cnt’: Aggregate count of errors which are not same-arm-return errors.
‘error_cnt’: Aggregate error count (same_arm_returns_cnt + alternate_arm_returns_cnt),
‘same_arm_returns_dict’: Dictionary with the keys being the name of the ROI and values are a list of frames when the same-arm-return errors were committed.
‘alternate_arm_returns_cnt’: Dictionary with the keys being the name of the ROI and values are a list of frames when the alternate-arm-return errors were committed.
‘alternations_dict’: Dictionary with the keys being unique ROI name tuple sequences of length len(shape_names) and values are a list of frames when the sequence was completed.
‘arm_entry_sequence’: Pandas dataframe with two columns: sequence of arm names entered, the frame the animal entered the arm, the frame that the animal left the arm.

Example

>>> data = np.zeros((100, 4), dtype=int)
>>> random_indices = np.random.randint(0, 4, size=100)
>>> for i in range(100): data[i, random_indices[i]] = 1
>>> df = pd.DataFrame(data, columns=['left', 'top', 'right', 'bottom'])
>>> spontanous_alternations = FeatureExtractionSupplemental.spontaneous_alternations(data=df, shape_names=['left', 'top', 'right', 'bottom'])

static three_point_angle(bp_1, bp_2, bp_3)

Compute frame-wise 3-point angles from three body-part trajectories.

Note

Wrapper method that validates input array/dataframe shape and dtypes before calling simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized().

See also

For scalar (single-frame) angle computation, use simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt(). For the numba-accelerated vectorized implementation used internally, see simba.mixins.feature_extraction_mixin.FeatureExtractionMixin.angle3pt_vectorized().

Parameters

bp_1 (Union[np.ndarray, pd.DataFrame]) – First body-part coordinates with shape (n_frames, 2).
bp_2 (Union[np.ndarray, pd.DataFrame]) – Second body-part coordinates with shape (n_frames, 2). Must have same frame count as bp_1.
bp_3 (Union[np.ndarray, pd.DataFrame]) – Third body-part coordinates with shape (n_frames, 2). Must have same frame count as bp_1.

Returns

1D array of frame-wise angles in degrees.

Return type

np.ndarray

Example

>>> bp_1 = np.array([[120, 200], [122, 198], [124, 197]], dtype=np.float32)
>>> bp_2 = np.array([[200, 180], [201, 179], [202, 178]], dtype=np.float32)
>>> bp_3 = np.array([[260, 140], [262, 139], [264, 138]], dtype=np.float32)
>>> FeatureExtractionMixin.three_point_angle(bp_1=bp_1, bp_2=bp_2, bp_3=bp_3)

static velocity_aggregator(config_path, data_dir, body_part, ts_plot=True)[source]

Aggregate and plot velocity data from multiple pose-estimation files.

Parameters

config_path (Union[str, os.PathLike]) – Path to SimBA configuration file.
data_dir (Union[str, os.PathLike]) – Directory containing data files.
body_part (str data_dir) – Body part to use when calculating velocity.
ts_plot (Optional[bool] data_dir) – Whether to generate a time series plot of velocities for each data file. Defaults to True.

Example

>>> config_path = '/Users/simon/Desktop/envs/simba/troubleshooting/two_black_animals_14bp/project_folder/project_config.ini'
>>> data_dir = '/Users/simon/Desktop/envs/simba/troubleshooting/two_black_animals_14bp/project_folder/csv/outlier_corrected_movement_location'
>>> body_part = 'Nose_1'
>>> FeatureExtractionSupplemental.velocity_aggregator(config_path=config_path, data_dir=data_dir, body_part=body_part)

static windowed_frequentist_distribution_tests(data, feature_name, fps)

Calculates feature value distributions and feature peak counts in 1-s sequential time-bins.

Computes (i) feature value distributions in 1-s sequential time-bins: Kolmogorov-Smirnov and T-tests. Computes (ii) feature values against a normal distribution: Shapiro-Wilks. Computes (iii) peak count in rolling 1s long feature window: scipy.find_peaks.

Warning

This is a legacy method. For KS test, use simba.mixins.statistics_mixin.Statistics.two_sample_ks(). For t-tests, use simba.mixins.statistics_mixin.Statistics.independent_samples_t. For Shapiro-Wilks, use :func:`simba.mixins.statistics_mixin.Statistics.rolling_shapiro_wilks(). For peaks, use simba.mixins.feature_extraction_supplement_mixin.FeatureExtractionSupplemental.peak_ratio().

Parameters

data (np.ndarray) – Single feature 1D array
feature_name (np.ndarray) – The name of the input feature.
fps (int) – The framerate of the video representing the data.

Returns

Of size len(data) x 4 with columns representing KS, T, Shapiro-Wilks, and peak count statistics.

Return type

pd.DataFrame

Example

>>> feature_data = np.random.randint(1, 10, size=(100))
>>> FeatureExtractionMixin.windowed_frequentist_distribution_tests(data=feature_data, fps=25, feature_name='Anima_1_velocity')
